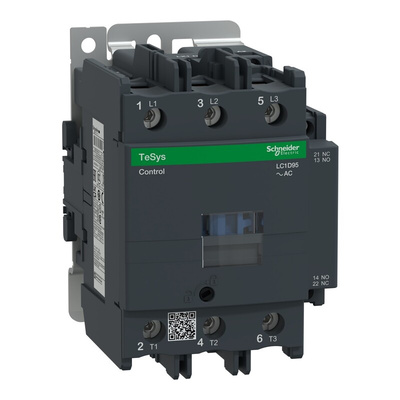

LC1D95P7, Schneider Electric LC1D Series Contactor, 230 V ac Coil, 3-Pole, 95 A, 45 kW, 3NO, 1 kV ac, Контактор

Schneider Electric Contactor, 3 Pole, 127 (L) x 125mm (D) - TeSys Deca Series - LC1D95P7

Use this contactor from Schneider Electric's TeSys Deca range in applications where power is frequently turned on and off. It's an ideal choice for controlling the electricity supply to a motor starter. Mechanical durability of 4 million cycles mean you can be sure of reliability throughout an extended service life. For added switching capabilities, the unit has two auxiliary contacts that allow more power to pass through your system. Insulation offers protection against shocks and also helps to stop the contactor from interfering with the function of nearby devices.

Features & Benefits

• Fast contact opening time of 6 to 20ms, so supplies an electrical charge almost instantly
• Resists shock and vibration for compatibility with harsh industrial environments
• Screw-clamp terminals hold wires securely for reduced maintenance needs
• IP20-rated enclosure is touch-proof and protected against objects larger than 12mm

Applications

• Oil and gas industry
• Mining and minerals processing
• Automotive manufacturing

Is this contactor flame-retardant?

Yes, this contactor is flame-retardant so you can be sure there's minimal risk of it catching alight if there's a fire.

What's the weight of this contactor?

This contactor weighs just 1.61kg.

Approvals

IECEE CB Scheme, UL, CSA, CCC, EAC, LROS (Lloyds register of shipping), RINA, BV, DNV-GL.

Standards

EN/IEC 60947-1, EN/IEC 60947-4-1, EN/IEC 60947-5-1, UL 60947-4-1, UL 60947-5-1, CSA C22.2 No 60947-4-1, CSA C22.2 No 60947-5-1, GB/T 14048.4.

UL E164862

CSA 43364

TeSys-to-Everlink-cross-references

Datasheet LC1D95P7

Catalogue - Innovative & Connected Solutions For Motor Starters

Instruction Sheet - LC1D95P7

Product Environmental Profile
