LC1D38P7, Schneider Electric LC1D Series Contactor, 230 V ac Coil, 3-Pole, 38 A, 18.5 kW, 3NO, 690 V ac, Контактор

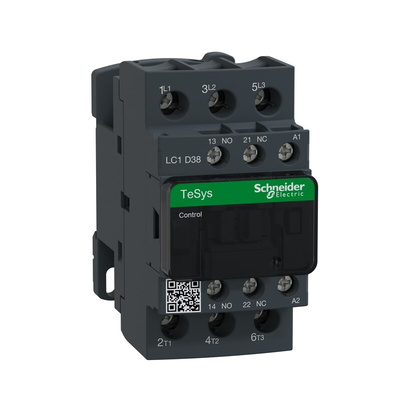

Schneider Electric Contactor, 6kV Impulse Voltage, IP20 Rating - TeSys D Series - LC1D38P7

Use this contactor from Schneider Electric to help you switch loads in high-current applications. As it’s suitable for slightly inductive or highly resistive loads, you’ll find it’s a versatile choice in your industrial workspace. The three NO contacts mean it energises a circuit when the contacts meet. Their spring-loaded mechanism opens and closes rapidly (4 to 19ms opening, 12 to 22ms closing), so you get reliably fast switching action. This device also has two integrated auxiliary contacts for added switching capabilities.

Features & Benefits

• Withstands an impulse voltage of 6kV to protect you and your equipment if there's a significant surge
• Operating temperature range of -40°C to +60°C, so suits harsh environments
• IP20 rating certifies it's touch-proof and resistant to objects larger than 12mm
• Operates at altitudes up to 3000m for compatibility with challenging locations

Applications

• Squirrel-cage motors
• Slip-ring motors
• Escalators

How robust is this contactor?

This component is resistant to vibration and shock, so you can trust it to perform in demanding settings. It's also flame-retardant, meaning it won’t contribute to the spread of flames in case of a fire.

Approvals

LROS (Lloyds register of shipping), CSA, UL, GOST, DNV, CCC, GL, BV, RINA, UKCA.

Standards

CSA C22.2 No 14, EN 60947-4-1, EN 60947-5-1, IEC 60947-4-1, IEC 60947-5-1, UL 508, IEC 60335-1.

UL E164862

CSA 43364
