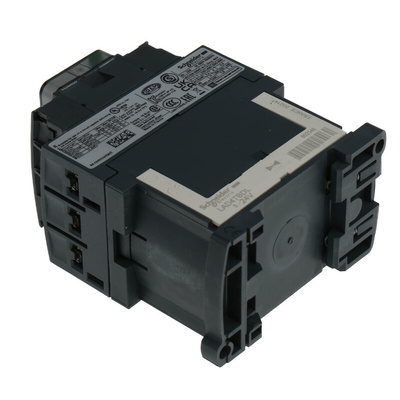

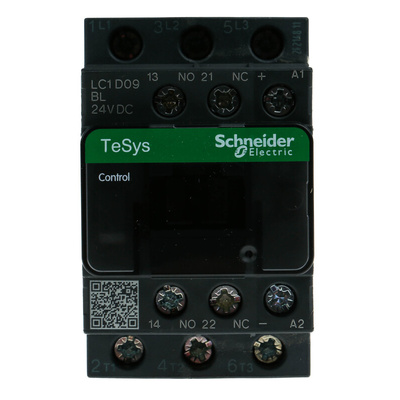

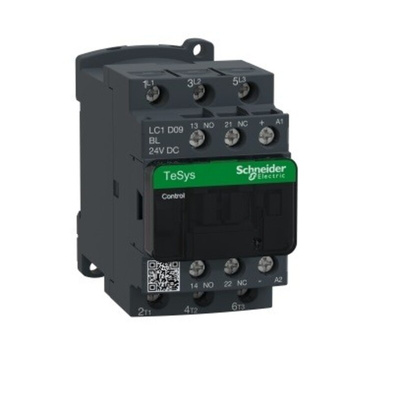

LC1D09BL, Schneider Electric LC1D Series Contactor, 24 V dc Coil, 3-Pole, 9 A, 4 kW, 3NO, 690 V ac, Контактор

Schneider Electric Contactor, 2 Auxiliary Contacts, For DC Control Circuits - TeSys Deca Series - LC1D09BL

Get the upper hand on productivity with this Schneider Electric contactor. Its simple design makes it easy to install, leaving you time to concentrate on your bottom line. The unit makes or breaks an electrical circuit while protecting it against over-voltage and high currents, so you know your equipment's running reliably and is protected against power spikes. It's flame-retardant, which means there's no chance of it catching alight in the event of a fire. You can use this contactor with both resistive loads or for motor control, making it a handy all-rounder in your electrical system.

Features & Benefits

• Compact dimensions of 77 (H) x 45 (W) x 95mm (D), helping to maximise board packing efficiency
• Resists shock and vibration, so it's compatible with demanding locations
• IP20-rated front panel that's protected against human touch and objects larger than 12mm
• Low power dissipation per pole between 0.2 and 1.56W, meaning it loses minimal energy during switching

Applications

• Agriculture equipment
• Food and beverage industries
• Paper and pulp mills
• Marine industry

How do I wire this contactor?

This contactor has screw terminals that are wired simply using just a screwdriver.

Standards

CSA C22.2 No 14, EN 60947-4-1, EN 60947-5-1, IEC 60947-4-1, IEC 60947-5-1, UL 508, IEC 60335-1.

Certificate No.
type":"Certificate No.",

LROS (Lloyds register of shipping), CSA, UL, GOST, DNV, CCC, GL, BV, RINA, UKCA.

UL E164862

CSA 43364
