LC1D12BL, Schneider Electric LC1D Series Contactor, 24 V dc Coil, 3-Pole, 12 A, 5.5 kW, 3NO, 690 V ac, Контактор

Schneider Electric LC1D TeSys D Contactors

TeSys D Contactors from Schneider Electric combine long mechanical and electrical life to offer a high reliable contactor. The range has been designed for integration in control systems and can be used to create motor starters for any type of application. The TeSys D contactors offer quick simple setup while maintaining compliance with international standards.

Features and Benefits

• Built-in auxiliary contacts for added switching capability
• Screw connections: IP20 finger-safe terminals with both North American and International terminal markings
• Can be panel mounted with screws or DIN Rail mounted
• Bidirectional peak limiting diode suppressor to protect the coil
• Easily installed accessories
• Flexible control circuit to suit a wide range of applications

What does the utilisation category AC1 and AC3 mean for the TeSys contactors?

Contactor utilisation categories define the current making and breaking values, based on the type of load to be controlled and the operating cycle conditions.

• AC-1: This applies to all AC devices with a power factor of at least 0.95. Example of use: resistive load, heating, distribution.


• AC-3: This applies to squirrel cage motors where breaking occurs while the motor is running. Example of use: all squirrel cage motors, lifts, escalators, conveyors, bucket elevators, compressors, pumps, mixers, air conditioning units.

What accessories are available?

• Auxiliary contact blocks with serrated wiping action
• Front mount dust tight auxiliary contact blocks
• Pneumatic time delay blocks
• Transient voltage surge suppressors
• Interface modules and electronic timers
• Mechanical latching blocks

Is the TeSys D range a double break pole type contactor?

Yes the Tesys D range uses linear translation movement that provides double breaking of the poles.

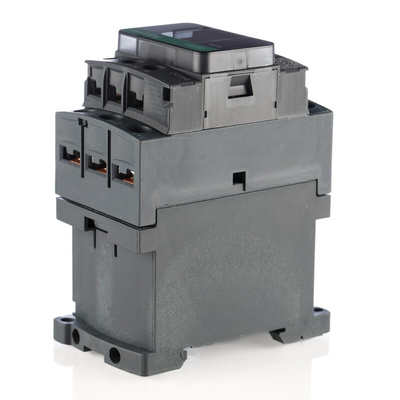

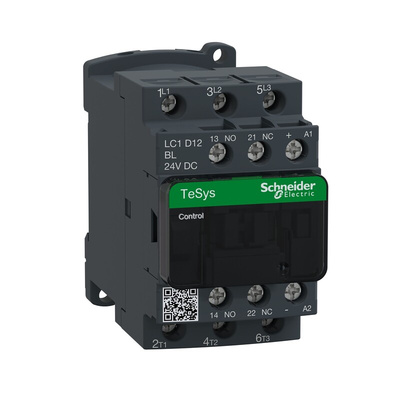

Schneider Electric Contactor, 690V AC Contact Voltage Rating, 77 (L) x 45 (W) x 93mm (D) - TeSys D Series - LC1D12BL

Crank up the switching capability of demanding applications with this 3-pole contactor from Schneider Electric. The versatile gadget switches resistive loads and motor-controlled operations on and off smoothly to improve performance. A mechanical and electrical life cycle of 20 years makes it a sustainable choice with the stamina to go the distance. The unit's small size, with dimensions of 77 (L) x 45 (W) x 93mm (D), is handy for installations where space is tight. You can panel mount it or simply clip it onto a DIN rail for convenient, tool-free fitting.

Features & Benefits

• Built-in auxiliary contacts boost switching capability
• IP20-rated unit is touch-proof for electrical safety
• Flexible control circuit for compatibility with different applications
• Wide operating temperature range between -5°C and +60°C for use in harsh environments

Applications

• Electric motors
• HVAC systems
• Lighting controls
• Automated packaging and assembly lines

How does a contactor work?

A contactor is a kind of relay that handles high-current load devices and high coil voltages. You can control this one remotely to make or break circuits of more than 10A.

Approvals

LROS (Lloyds register of shipping), CSA, UL, GOST, DNV, CCC, GL, BV, RINA, UKCA.

Standards

CSA C22.2 No 14, EN 60947-4-1, EN 60947-5-1, IEC 60947-4-1, IEC 60947-5-1, UL 508, IEC 60335-1.

UL E164862

CSA 43364
