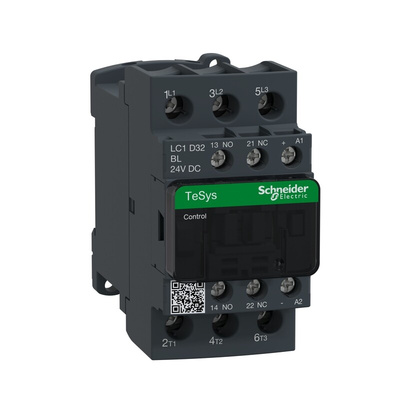

LC1D32BL, Schneider Electric LC1D Series Contactor, 24 V dc Coil, 3-Pole, 32 A, 15 kW, 3NO, 690 V ac, Контактор

Schneider Electric Contactor, 3 Pole, 85 (L) x 99mm (D) - TeSys Deca Series - LC1D32BL

Reliably send and cut-off power supply to a motor starter with this contactor from Schneider Electric's TeSys Deca range. Its fast-acting contacts open and close an electrical circuit almost instantly, so react effectively to a motor's needs. As the contactor suppresses electrical arcs, it helps to protect your equipment against damage from power faults and unnecessary downtime. For safety, the unit is isolated and minimises the risk of shocks during handling. You can be assured of this contactor's light carbon footprint as it's end-of-life-optimised to reduce the amount of waste sent to landfill.

Features & Benefits

• Resists shock and vibration for compatibility with demanding settings
• IP20-rated enclosure is protected against touch and objects larger than 12mm
• Flame-retardant for safety, so there's minimal risk of it catching alight if there's a fire
• Space-saving dimensions of 127 (height) x 85 (width) x 130mm (depth), so needs minimal installation space

Applications

• Lighting control circuits
• Chemical and petrochemical industry
• Printers and binderies

What's the operating temperature range of this contactor?

This contactor has a wide operating temperature range of -40°C to +60°C, which makes it suitable to use in extreme settings.

Standards

CSA C22.2 No 14, EN 60947-4-1, EN 60947-5-1, IEC 60947-4-1, IEC 60947-5-1, UL 508, IEC 60335-1.

Certificate No.
type":"Certificate No.",

LROS (Lloyds register of shipping), CSA, UL, GOST, DNV, CCC, GL, BV, RINA, UKCA.

UL E164862

CSA 43364

Datasheet LC1D32BL

Catalogue - Innovative & Connected Solutions For Motor Starters

Instruction Sheet - Series LC1D

Line drawing - LC1D32BL

Product Environmental Profile
