9681000047, Mascot 6W Plug-In AC/DC Adapter 12V dc Output, 500mA Output

Mascot Power Supply

The Mascot power supply has an unregulated output voltage of 12VDC. It supports numerous applications due to a wide input voltage range up to 230VAC. It has input plugs that are compatible with standard 2-pin Euro sockets. The device provides high-quality manufacturing and testing. The power supply offers exchangeable output plugs, reduced stocking requirements, short delivery lead times along with snap-locks for added safety.
Note:
For Industrial use only, not in the scope of Regulation 2009/125. Unregulated adaptors will supply higher output voltages than specified when used at less than maximum load.
Inclusions:

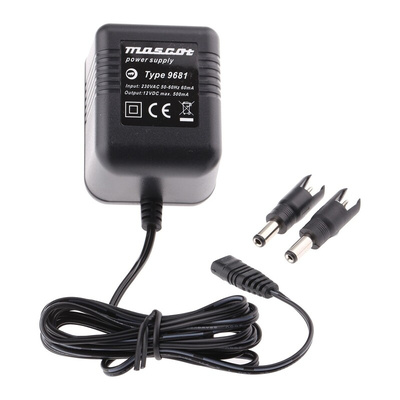

2 loose connectors with a snap-lock feature, 1x2.1mm and 1x2.5mm.

Features and Benefits

Unregulated output
Double insulation
Output connectors are co-axial, female (not suitable for use as battery chargers)
Output current is 500mA
Plug type C
Power rating is 6W

Certifications

EN 60950
IP40 rated

MODEL 9681 AC/DC UNREGULATED PLUG-IN ADAPTER

Instruction manual main adaptors

Datasheet
