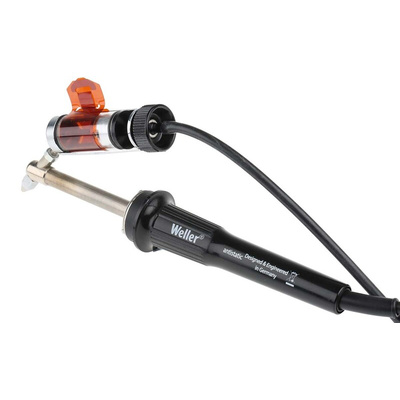

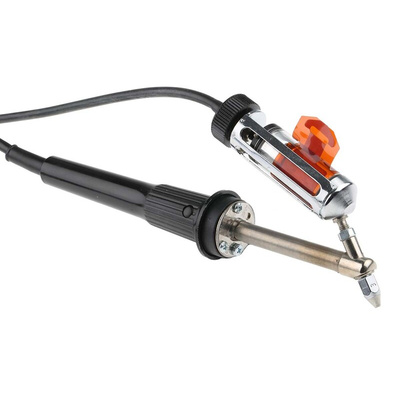

Weller T0051319099 Desoldering Iron, 80W Output, Паяльник

DSX 80, 80 W, 24 V Desoldering Iron with Solder Extraction Tube.

From Weller this is the DSX80 Solder Extraction desoldering iron complete with an integrated extraction tube assisting in removing the solder from where you are working. The solder extraction tube will not affect the solder temperature at the solder tip therefore not reduce the required outcome of the solder work. The extraction tube is fitted over the solder tip plus is easy to remove and replace plus, the unit is fitted with a micro finger switch to control the suction and vacuum removal of solder. The suction switch is fitted on the handle of the tool. An integrated Kapton ribbon allows the safe changing of the solder extraction tube. The solder tips are easy to change as they are threadless and easily locked in place by a quick quarter turn. Compatible with WT soldering stations the desoldering iron heat to the required temperature, 50°C to 450°C within 50 seconds with 80 W of power and a voltage of 24 V.

Features and Benefits.

• DSX80 Desoldering Iron.


• Fitted solder extraction tube.


• Vacuum removal of solder away from work area.


• Micro finger switch operation.


• Integrated Kapton ribbon.


• Solder tips easily removed (threadless).


• Temperature range 50°C to 450°C.


• Temperature controlled.


• 24 V


• 80 W.


• Heats up within 80 seconds.


• DX Top range.


• WT Compatible.

What's included?

• DSX80 Desoldering Iron.


• Solder Extraction tube.


• DX 113 Desoldering nozzle, stock number 4053525.

Typical Applications.

• Desoldering applications.


• Electronics.


• Where instant removal of solder required.

Weller DX Desolder Nozzles Available.

• DX 113, stock number 4053525.


• DX 113, DX 113 HM, 1.2 mm, stock number 7553071.


• DX 117, 2.9 x 1.5 x 23 mm, stock number 9140104.


• DX 118, 1.2 mm, stock number 7553069.

Desoldering Kit Available.

• DSX 80 Desoldering kit, stock number 393894.

Power Supply Units Available.

• WR 2 Soldering station, 300 W, 230 V, stock number 7192608.


• WR 3M Soldering station, 420 W, 230 V, stock number 186630.


• WR 3000M Soldering station set, 360 W, 230 V, stock number 165396.


• WDD 81V, Desoldering Station, 80 W, 230 V, stock number 4310323.

Accessories Available.

• Suction nozzle, Conus cleaner, stock number 6022078.


• FE Attachment set, extraction assembly, stock number 1871932.


• WDH 30, Soldering iron stand, stock number 186258.


• Kapton strap, stock number 5096624.


• O Ring, stock number 5150661.
