X500-22RS, Moflash X 500 Series Flashing Beacon, 230 V, Surface Mount, Xenon Bulb, Маячок

Moflash Xenon Signalling Beacon, Flashing, 230 V AC - X500 Series - X500-22RS

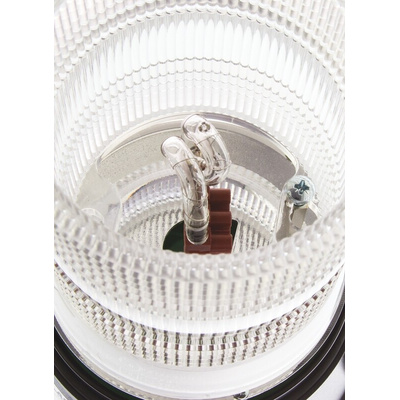

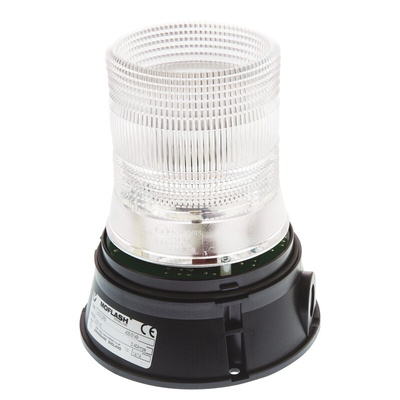

The Moflash AC-powered xenon beacon is ideal for indoor or outdoor applications where a very bright warning signal is needed. It produces a powerful 24-joule flash at a rate of 60 FPM (flashes per minute). The warning can be made even more noticeable by using the double-flash mode which extends the signal duration with an 18-joule second flash. This highly visible signal beacon can be used in a range of applications including fire alarms and process control.

• High light output maximises warning efficiency
• Integrated Fresnel lens increases light intensity
• 360° light output (around vertical axis) boosts signal effectiveness
• Versatile option suitable for surface or wall mounting

Application Information

• Manufacturing
• Warehouses
• Process control

Can I run this beacon all day?

Because of the high power rating of the beacon, it should be used for a maximum of 12 hours in a 24-hour period.

Is this beacon weatherproof?

Yes, this beacon has an IP (ingress protection) rating of 65, meaning it's dust-tight and will protect against low-pressure water jets. To make the most of this protection, fit the unit in an upright position, with the base below the lens.
