QS18VP6D, Banner Diffuse Photoelectric Sensor, Block Sensor, 450 mm Detection Range, Фотоэлектрический датчик

QS18 ’World Beam’ Series

The WORLD-BEAM QS18 series of photoelectric sensors offer exceptional optical performance in compact QS18 housing and a unique space saving housing design that directly replaces barrel/rectangular style sensors.
The sensors have a reliable detection when a fixed background is present and the object colour or shape when the shape varies.
The QS18 series of sensors are available in opposed, polarized or non-polarized retro-reflective, convergent, regular or wide-angle diffuse, laser, ultrasonic, plastic or glass fibre optic, fixed-field and adjustable-field sensing modes.

ABS housing with 3mm mounting hardware included
10Vdc to 30 Vdc supply voltage
Single turn sensitivity potentiometer on retro and diffuse models (finger or screwdriver adjustable)
Solid-state complementary (SPDT): NPN or PNP (current sinking or sourcing), depending on model
2 LED indicators on sensor top
Fast response times

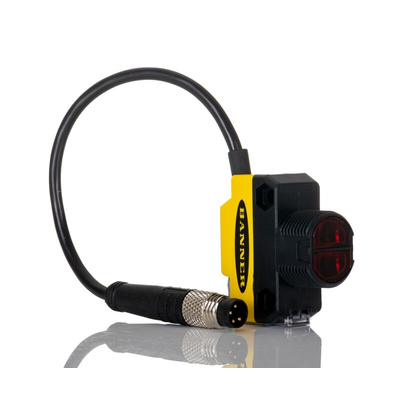

2m pre-cabled or 4-pin, 150mm Pico-style pigtail connector.

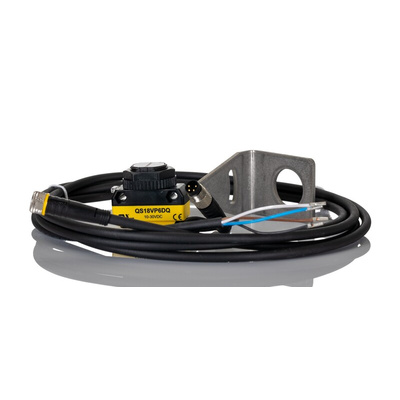

All models supplied with mounting bracket, polarised retro model supplied with reflector
Operating temperature range -20 to +70°C
IEC IP67, NEMA 6 Rated

Supplied with
type":"Supplied with",

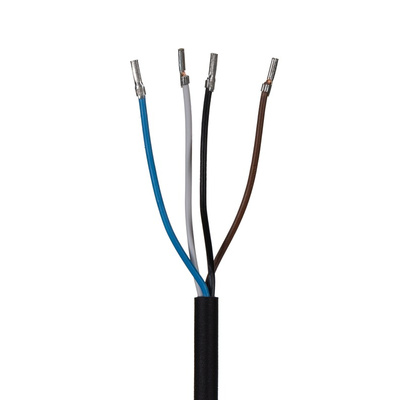

Cable (662-5553 - PKG4M-2/TXL) and Mounting Bracket (303-3200 - SMB18A)

QS18VP6DQ Photoelectric Sensor Diffuse Mode Sensor

WORLD-BEAM QS18 Miniature self-contained photoelectric sensors in universal housing

Instruction Manual - Photoelectric Sensor Solutions
