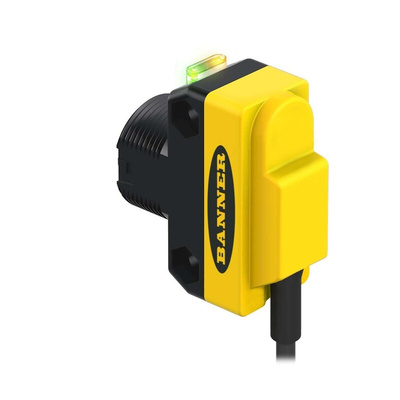

QS186E, Banner Through Beam Photoelectric Sensor, Block Sensor, 20 m Detection Range, Фотоэлектрический датчик

Banner Photoelectric Sensor, 10 to 30V DC Operating Voltage Range, 20m Detection Range - QS18 Series - QS186E

Monitor the flow of objects in your conveyor setup with this photoelectric sensor from Banner. It emits an infrared light that travels to a receiver (847-9407). When opaque objects block the beam of light, it sends a signal to your system to help you identify the position of a product. Thanks to its sensing range of 20m, the device tracks items over long distances. There's no waiting around for the unit to start up, as it powers on in just 100ms. As it's backed by an IP67 rating, you can trust the sensor is fully protected against dust and submersion in 1m of water for up to 30 minutes.

Features & Benefits

• Housing made of ABS for resistance to impact and wear
• LED indicators show power and error status for easy monitoring

Applications

• Automatic doors
• Material handling
• Pharmaceutical processing

How do I know if I've wired this sensor properly?

This unit comes with reverse polarity protection, so it doesn't power on if the wires are connected incorrectly. This helps to improve electrical safety in your work environment.

Supplied with
type":"Supplied with",

Sensors (Emitter: 306-1618 - QS186E and Receiver: 306-1624 - QS18VP6R) and 2 Mounting Brackets (303-3200 - SMB18A)

QS18VP6R Photoelectric Sensor Opposed mode (receiver)

QS186E Photoelectric Sensor Opposed Mode (emitter)
