52103310+53112620, Lapp Skintop M16 Cable Gland With Locknut, Nickel Plated Brass, IP68, Кабельный ввод

4058744
Номер производителя: 52103310+53112620Производитель: Lapp
Цена за шт.
3501.00 руб. (С НДС) *
Количество 10+ 20+ 30+ 40+
Цена 3360.00 руб. 3255.00 руб. 3078.00 руб. 3012.00 руб.

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

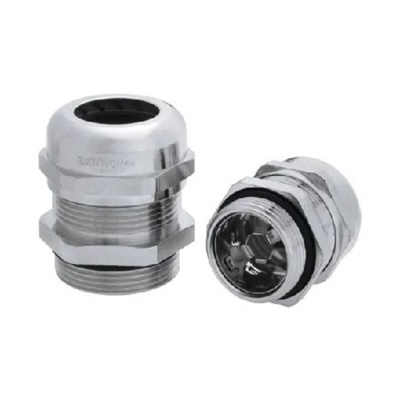

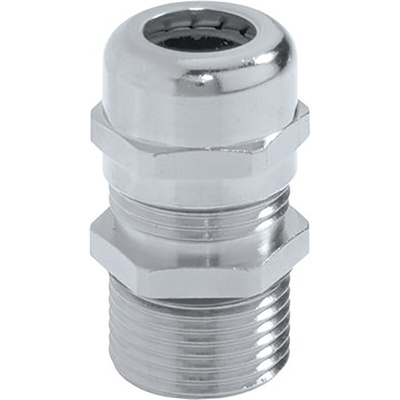

Lapp PG & Metric Nickel Plated Brass Cable Gland

From Lapp, this Skintop MS-SC cable gland offers environmental resistance and is EMC safe. The cable gland features a low-resistance screen contact, for optimum EMC protection. The highly conductive EMC screen contact is also very flexible, and so can clamp onto various screen diameters.

With a nickel-plated brass construction, the cable gland is very robust, and provides optimum strain relief to the cable. Its screw on action ensures easy fitting, which can cut down assembly time.

Used in panels, junction boxes and machinery housings, this gland is a durable and low maintenance solution to cable management. It is ideal for use where ever protection against electro-magnetic signal interference is a priority. Also, thanks to its locknut, the gland cna be securly fastened to painted, podwer coated or adonized surfaces.

Features and Benefits

• Suitable for Cables With or Without Inner Sheath
• Cable is centralized, attached, strain relieved and hermetically sealed
• Optimum EMC Protection
• Flexible EMC Contact
• IP68 Protection, 10 Bar
• Temperature Resistant
• Operating temperature from -25° to +100°C

Applications

This gland is designed to be used for EMC-complaint earthing of copper braiding, or for cables with a copper shaft sheath. It is suitable for use in applications where EMC compliance is required, such as;

• Automation and Control Technology
• Telecommunication
• Industrial Machinery
• Plant Engineering

Environment

This Skintop gland is sealed to IP68, which means it has excellent resistance to dust and particle ingress, and is waterproof even in shallow submersion. It also features excellent temperature resistance. Because of this, the gland is suitable for use in harsh industrial environments, and some open air applications.

Standards

EN50262

Supplied with

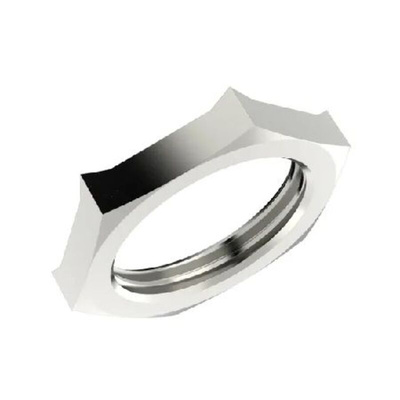

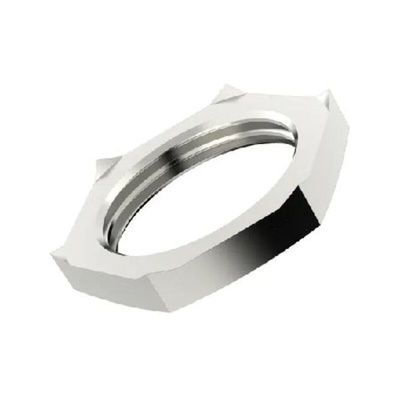

Lock nut

Техническая спецификация
pdfDatasheet
pdfDatasheet
pdfCable Gland Selection Chart
Контргайка в комплекте:
Да
Максимальный диаметр кабеля:
9мм
Материал:
Никелированная латунь
Минимальный диаметр кабеля:
4.5мм
Рабочая температура - максимальная:
+100°C
Рабочая температура - минимальная:
-25°C
Размер резьбы:
M16
Серия:
Skintop
Степень защиты IP:
IP68
Цвет:
Металлический
