53112030 + 52103030, Lapp SKINTOP Series Metallic Nickel Plated Brass Cable Gland, M25 Thread, 9mm Min, 17mm Max, IP69K, Кабельный ввод

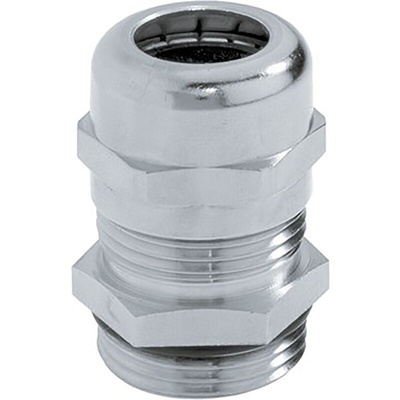

LAPP Nickel Plated Brass Cable Gland, M25, 17mm Maximum Cable Diameter - SKINTOP MS-M Series - 53112030 & 52103030

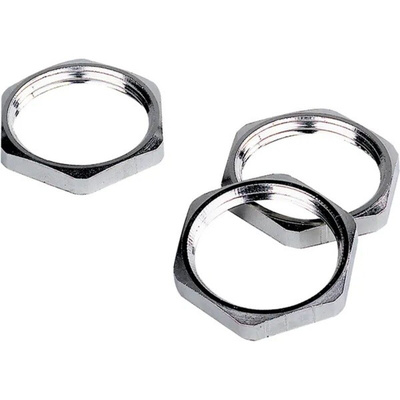

Use this cable gland from LAPP to secure electrical cables to your equipment. The component's nickel-plated brass body is durable and corrosion resistant, so you can count on it to last a long time and need minimal maintenance. It comes with a locknut to ensure the connection is secure and to prevent impacts from accidentally detaching it. With a cable diameter range of 9 to 17mm, this unit is highly versatile. As it provides optimum strain relief to protect a connection point, a component like this one would commonly be fitted to manufacturing equipment.

Features & Benefits

• Wide operating temperature range of -25°C to +100°C for use in demanding environments
• IP68 (ingress protection) rating means it's dust-tight and able to withstand 30 minutes immersion in 1.5m of water

Applications

• Telecommunications equipment
• Control and instrumentation machinery
• Data banks

What are the dimensions of this cable gland?

This cable gland has a 31.9mm open diameter and an overall length of 38.5mm.

What are the sealing ring and O-ring made of?

The sealing ring is made of CR (chloroprene rubber) and the O-ring is made of NBR (nitrile butadiene rubber). Both materials are resistant to ozone and UV light.

Standards

EN 50262
