52103040+53112040, Lapp SKINTOP Series Metallic Nickel Plated Brass Cable Gland, M32 Thread, 11mm Min, 21mm Max, IP68, IP69, Кабельный ввод

Lapp Round Top Cable Gland, IP69

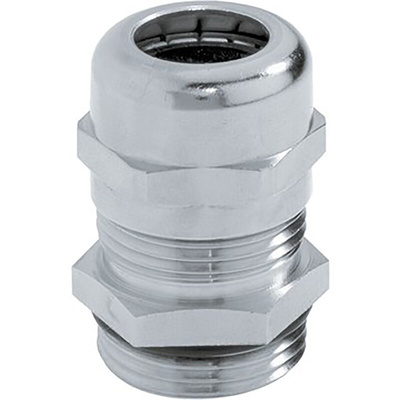

From Lapp, this Skintop MS-M series cable gland is a versatile solution in cable management. Able to be used in panels, junction boxes and machine housing, the cable gland has a simple screw-on-action for easy cable feeding through pre-drilled bore holes.

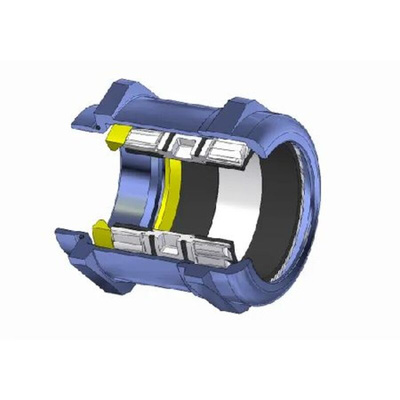

With an innovative double lamella gasket, the cable gland allows easy assembly of cables with larger diameters, and offers optimum strain relief.

The Skintop MS-M cable gland has a robust nickel plated brass construction that ensures excellent mechanical resistance and environmental sealing. It also features protection against acid and chemicals, meaning it is suitable for specialist applications. Finally, its resistance to corrosion and temperature ensures a low maintenance cable management solution in many environments.

Features and Benefits

• Double Lamella Gasket
• IP69 Protection
• Acid Resistance
• Chemical Resistance
• Temperature and Corrosion Resistance
• Operating Temperature Dynamic -25°C up to + 100°C
• Operating Temperature Fixed -40°C to +100°C

Applications

This cable gland is ideal for use in applications where chemical resistance is a concern, such as;

• Chemical Industry
• Plant Engineering
• Automation and Control Equipment

Environment

This cable gland is rated for IP69, which means it has excellent resistance to particle and liquid ingress. As well as being suitable for most harsh and outdoor environments, the gland is also suitable for industrial clean downs with high pressure water jets and hot water.

Supplied with

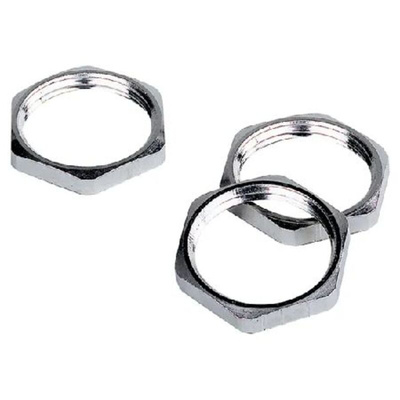

Lock nut

LAPP Cable Gland, M32 Thread, 11 to 21mm Cable Diameter - SKINTOP Series - 52103040+53112040

Organise and protect the wiring to your appliance with this cable gland from LAPP. It's constructed from resilient nickel-plated brass that prevents corrosion and shock from damaging your electrical connections. The unit features an O-ring made from NBR (nitrile butadiene rubber), which delivers a tight seal that doesn't loosen over time. With its large clamping range between 11 and 21mm, this cable gland is a versatile option that adjusts to serve many different hook-ups across your system.

Features & Benefits

• Includes a nickel-plated brass locknut to reinforce connections against vibration and shock
• Operates at temperatures between -25°C and +100°C for a consistent seal even in demanding conditions
• IP68 (ingress protection) rating indicates complete protection against dust and submersion in water

Applications

• Medical equipment
• Pharmaceutical industry
• Machinery manufacturing

When should I use a locknut with my cable glands?

The security of a cable gland's installation depends partly on the amount of power flowing through the connected cables. Larger amounts of electricity increase the risk of the cable gland loosening and potentially disconnecting. A locknut provides your connection with the extra reinforcement needed to withstand heavy electrical flows.

Standards

EN 50262
