52103050+53112050, Lapp SKINTOP Series Metallic Nickel Plated Brass Cable Gland, M40 Thread, 19mm Min, 28mm Max, IP68, Кабельный ввод

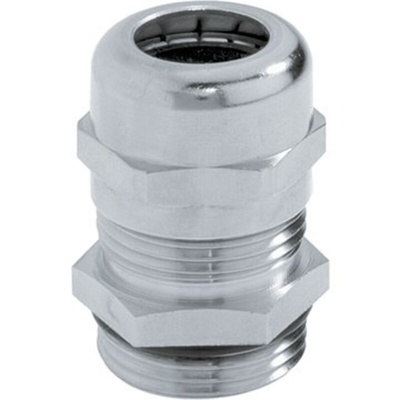

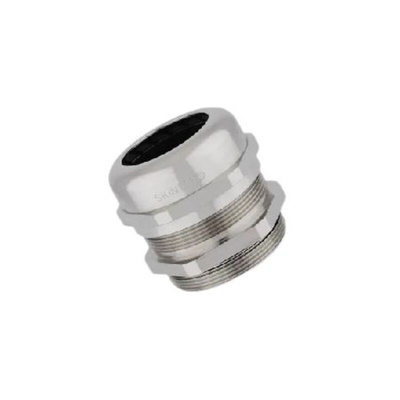

LAPP Cable Gland, M40 Thread, 19 to 28mm Cable Diameter - SKINTOP Series - 52103050+53112050

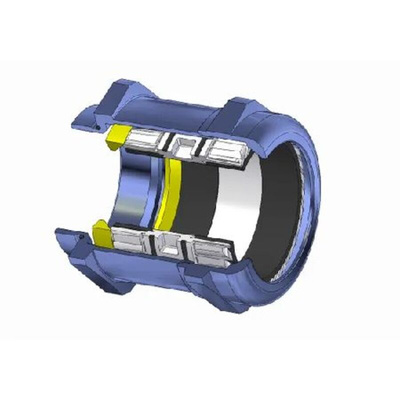

Protect your electrical wires from damage with this robust cable gland from LAPP. The unit has a double lamella gasket, which makes it easier for you to assemble cables with large diameters. It's made of nickel-plated brass that's resistant to corrosion and impact, so you can rely on it for long-term performance in harsh conditions. For added protection, this unit has a chloroprene seal to block out the dust, dirt and moisture you'd expect in industrial workplaces. For quick and easy installation, just screw the cable gland onto your panel or equipment surface.

Features & Benefits

• Wide operating temperature range of -40°C to +100°C for use in harsh environments
• Reliable strain relief to protect the cable from bending at damaging angles
• High resistance to acid and chemicals for safe industrial use
• UV-resistant seals and O-ring for use in direct sunlight

Applications

• Marine engineering
• Process and packaging facilities

What does an IP68 (ingress protection) rating mean?

An IP68 rating means that this cable gland can withstand dust and immersion in up to 1.5m of water for 30 minutes.

Standards

EN 50262

Datasheet

Datasheet

Cable Gland Selection Chart
