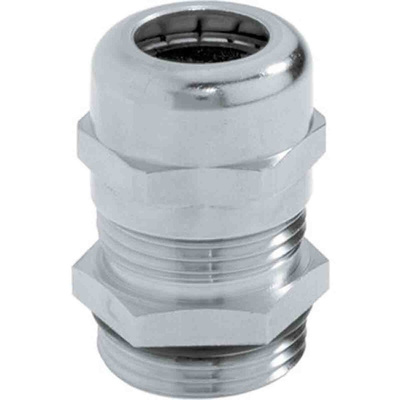

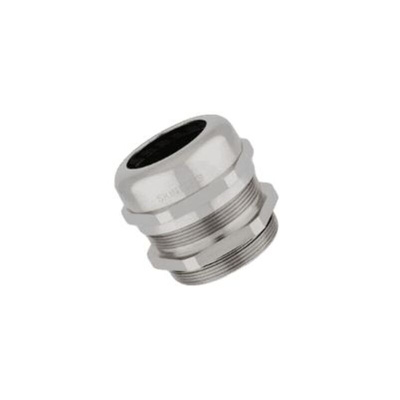

52103070+53112070, Lapp SKINTOP Series Metallic Nickel Plated Brass Cable Gland, M63 Thread, 34mm Min, 45mm Max, IP68, Кабельный ввод

Lapp Round Top Cable Gland, IP69

From Lapp, this Skintop MS-M series cable gland is a versatile solution in cable management. Able to be used in panels, junction boxes and machine housing, the cable gland has a simple screw-on-action for easy cable feeding through pre-drilled bore holes.

With an innovative double lamella gasket, the cable gland allows easy assembly of cables with larger diameters, and offers optimum strain relief.

The Skintop MS-M cable gland has a robust nickel plated brass construction that ensures excellent mechanical resistance and environmental sealing. It also features protection against acid and chemicals, meaning it is suitable for specialist applications. Finally, its resistance to corrosion and temperature ensures a low maintenance cable management solution in many environments.

Features and Benefits

• Double Lamella Gasket
• IP69 Protection
• Acid Resistance
• Chemical Resistance
• Temperature and Corrosion Resistance
• Operating Temperature Dynamic -25°C up to + 100°C
• Operating Temperature Fixed -40°C to +100°C

Applications

This cable gland is ideal for use in applications where chemical resistance is a concern, such as;

• Chemical Industry
• Plant Engineering
• Automation and Control Equipment

Environment

This cable gland is rated for IP69, which means it has excellent resistance to particle and liquid ingress. As well as being suitable for most harsh and outdoor environments, the gland is also suitable for industrial clean downs with high pressure water jets and hot water.

Supplied with

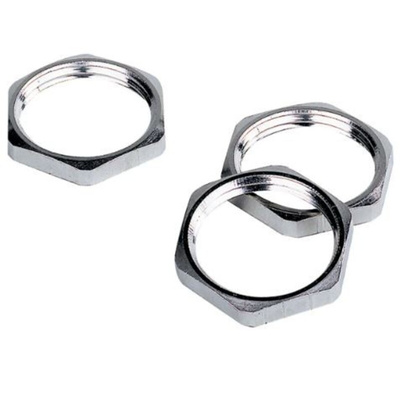

Lock nut

LAPP Cable Gland, Locknut Included, 73.5mm OD - SKINTOP Series - 52103070+53112070

Need to protect electrical connections in your industrial equipment? Use this LAPP cable gland. It has an IP69 rating, meaning it's protected against dust and hot pressurised water jets, so you can use it safely in demanding environments. By holding connections inside its rigid metal body, it secures them against impact and offers strain relief to cables, minimising wear caused by movement and twisting. As the gland screws simply onto a mounting surface and comes with a locknut, you can be sure of a firm fit.

• Compatible with 34 to 45mm cables for wide compatibility
• UV-resistant for use in outdoor applications
• Robust nickel-plated brass body resists corrosion for durability in damp environments

Applications

• Outdoor electrical installations
• Food production
• Offshore and marine industries

Do I need special tools to assemble this cable gland and locknut?

No, you can assemble the unit with just a spanner, so installation is quick and simple.

Standards

EN 50262

Datasheet

Datasheet

Cable Gland Selection Chart

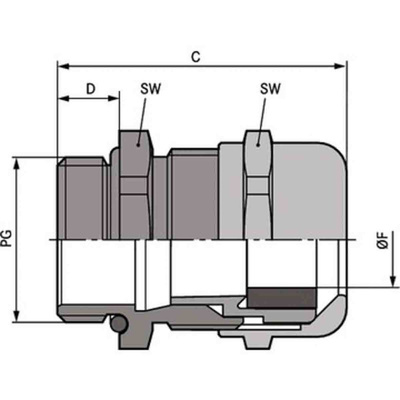

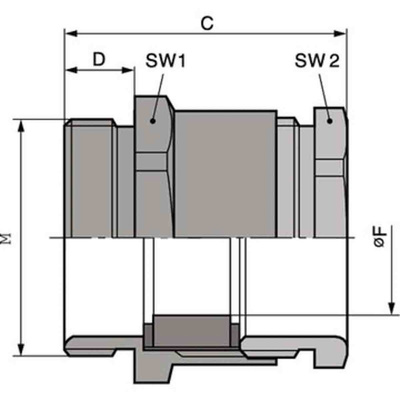

Line Drawing - 5210 Series
