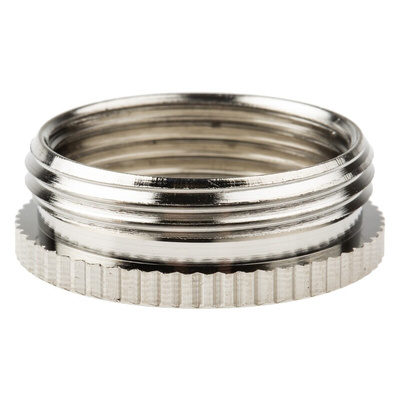

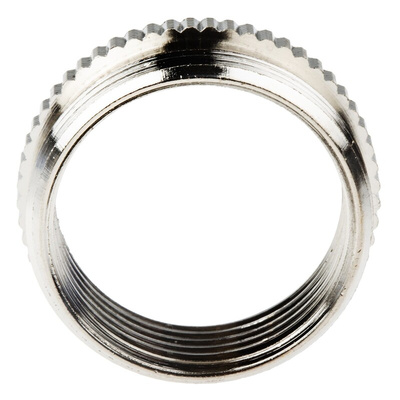

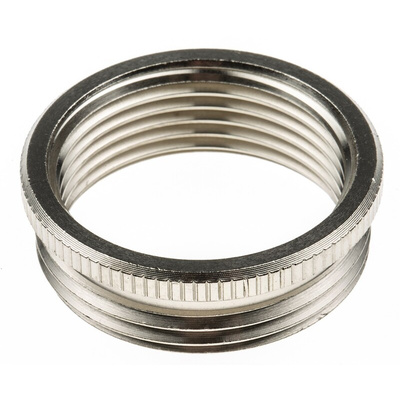

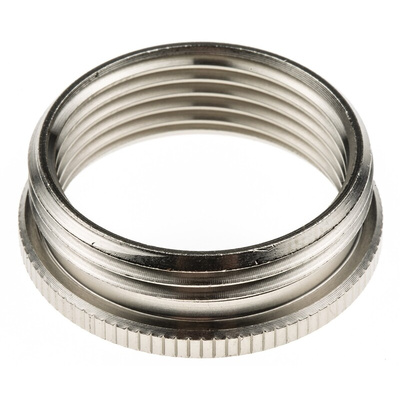

52104498, Lapp Cable Gland Adaptor, PG21 Exterior Thread, M25 Interior Thread, Nickel Plated Brass, SKINDICHT Series, Переходник

PG to Metric Metal Adapters

From Lapp, this PG to Metric adapter is ideal for using Metric threaded accessories in PG threads. Featuring a robust nickel plated brass construction, the adapter has a high degree of mechanical resistance.

Features and Benefits

• Allows Metric Accessories to adapt to PG Threads
• Robust Construction
• Operating Temperature of -60°C to +200°C

Applications

This SKINDICHT® MA-PG/M adapter converts from a metric outer thread to a PG inner thread, and can be used with;

• Machines
• Devices
• Housings

Alternatives

Different sizes of adaptor are available.

• 405-9012 is a PG7 to M12 Adaptor
• 405-9028 is a PG9 to M16 Adaptor
• 405-9034 is a PG11 to M16 Adaptor
• 405-9040 is a PG11 to M20 Adaptor
• 405-9056 is a PG13.5 to M20 Adaptor
• 405-9062 is a PG16 to M25 Adaptor
• 405-9078 is a PG21 to M25 Adaptor
• 405-9084 is a PG21 to M32 Adaptor
• 405-9090 is a PG29 to M40 Adaptor
• 405-9107 is a PG36 to M40 Adaptor

LAPP Cable Gland Adapter, PG to Metric Type, Metal - SKINDICHT Series - 52104498

Save time when hooking up equipment with different thread types using this cable gland adapter from LAPP. It lets you quickly connect a PG-threaded instrument to equipment with a metric thread, which removes the hassle of having to change your connectors. A robust nickel-plated brass construction makes the unit resistant to corrosion and wear, so it's suitable to use in harsh environments.

• Compatible with extreme settings, thanks to a wide operating temperature range between -60°C and +200°C
• Comes in a pack of five that you can store and use when needed
• Smooth metal surface is easy to clean

Applications

• Telecommunication and data centres
• Food and beverage industries
• Industrial automation

How do I install this adaptor?

This cable gland adaptor is easy to install – simply screw it into a compatible hole.

Metal Cable Gland Adaptor PG/Metric Data Sheet

Datasheet - 52104498
