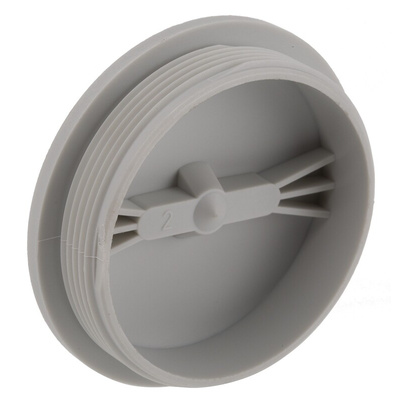

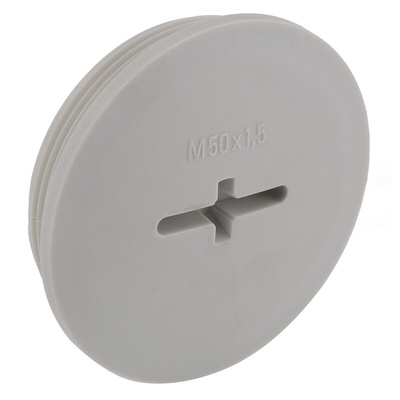

52006160, Lapp Blanking Plug, M50, Fibreglass Nylon, 56.1mm Diameter, Threaded, Пробка-заглушка

Lapp Blanking Plug - Metric

From Lapp, these blanking plugs are used to close over pre-drilled threaded bore holes. If a cable opening in a panel, junction box or machine housing has become redundant, these blanking plugs can be used to seal the bore hole.

Ensuring a low level of environmental resistance (or higher when coupled with an o-ring) these blind plugs have far more use than the merely aesthetic, and can help protect wiring and machinery components.

Features and Benefits

• Robust Glass Fibre Reinforced Construction
• IP54 Protection (IP68 when used with appropriate o-ring)
• Metric Sizes

Applications

These blind plugs can be used in;

• Control Cabinet Manufacturing
• Distribution Boxes
• Junction Boxes

Accessories

These blind plugs can be used with corresponding Lapp o-rings for added environmental sealing.

• 664-4609 are M 12 x 1.5mm O-Rings
• 664-4606 are M 12 x 2.0mm O-Rings
• 664-4603 are M 16 x 1.5mm O-Rings
• 664-4612 are M 16 x 2.0mm O-Rings
• 664-4619 are M 20 x 1.5mm O-Rings
• 664-4615 are M 20 x 2.0mm O-Rings
• 664-4628 are M 25 x 2.0mm O-Rings
• 664-4621 are M 32 x 2.0mm O-Rings
• 664-4625 are M 40 x 2.0mm O-Rings
• 664-4634 are M 50 x 2.0mm O-Rings

LAPP Cable Gland Plug, Blanking Type, IP54 Rating - SKINDICHT Series - 52006160

This cable gland plug from LAPP helps to seal pre-drilled holes in junction boxes and panels while they're not in use. It's made from polyamide with glass fibre reinforcement, so it's a thermally-stable unit that's strong and resistant to wear, chemicals and impact. With the addition of an O-ring, it gives you an IP68 rating. This means it's dust-tight and suitable for immersion in water up to three meters deep.

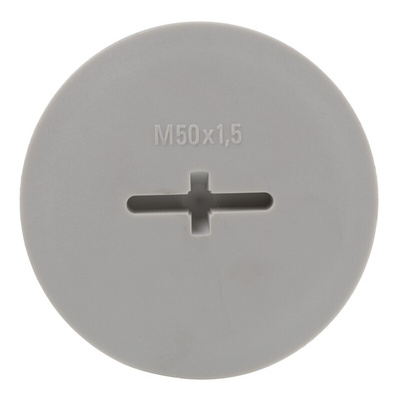

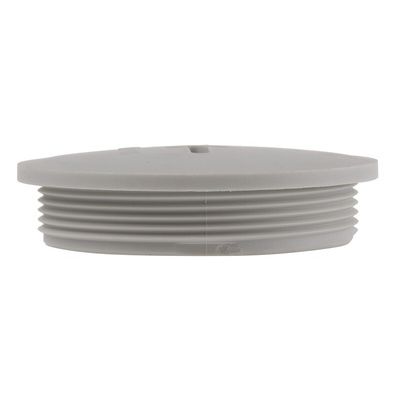

• Threaded, with a slot in the top for quick and easy installation and removal
• Material is slow burning to maximise the fire safety of control panels and junction boxes

Applications

• Process control equipment
• Industrial automation networks
• Power distribution enclosures
• Telecommunications industry

Is this blanking plug suitable for hot environments?

This cable gland plug has a wide operating temperature range between -40°C and +100°C, so you can use it in demanding environments.

Drawing

Lapp Datasheet 4069362

Lapp Datasheet 4069362

4069362 Datasheet
