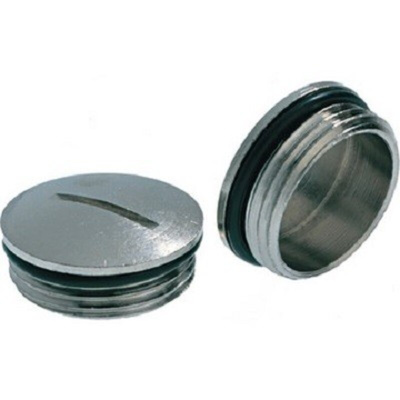

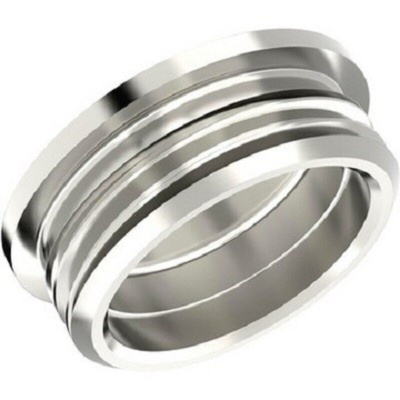

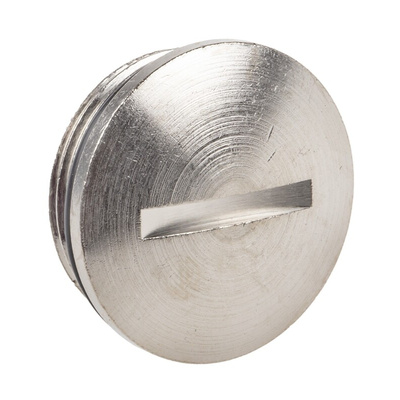

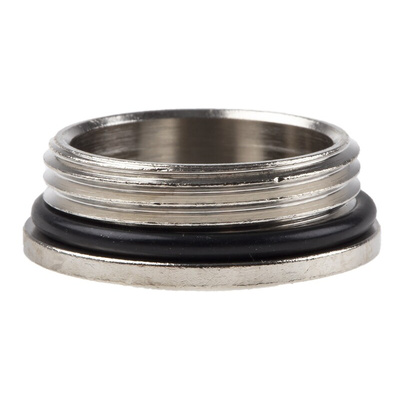

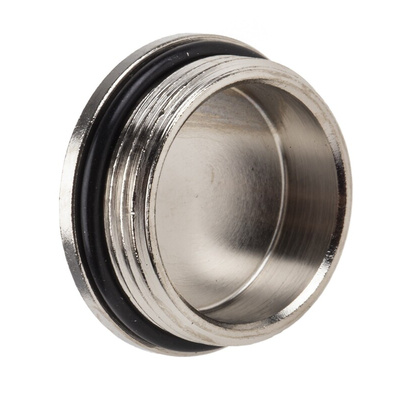

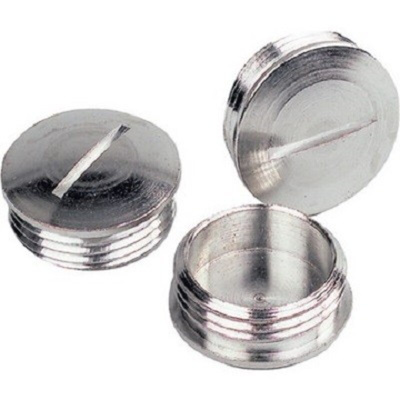

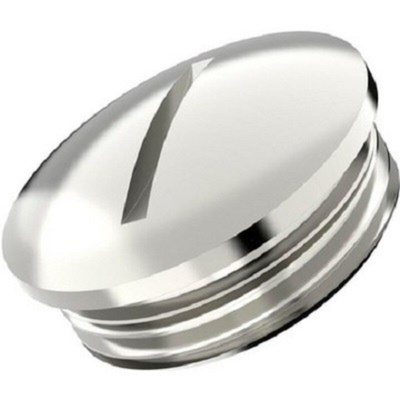

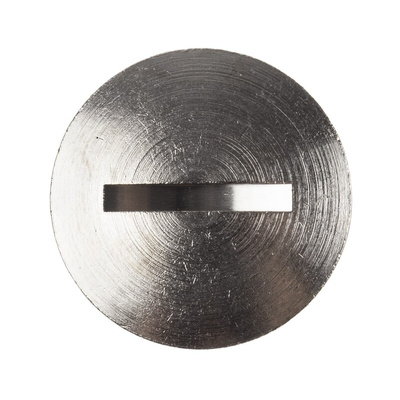

52103135, Lapp Blanking Plug, M25, Nickel Plated Brass, 28mm Diameter, Threaded, Пробка-заглушка

LAPP Cable Gland Plug, M25 x 1.5 Thread, Nickel Plated Brass - SKINDICHT Series - 52103135

This cable gland blanking plug from LAPP seals off unused electrical connection points to prevent particles from entering machinery. This increases the reliability and safety of equipment by stopping dust, moisture or gas from entering the machine through an open hole. Its nickel-plated brass construction makes it resistant to corrosion and high temperatures, so it's a low-maintenance choice. Installation and removal is straightforward as the plug simply screws into place using a screwdriver.

Features & Benefits

• IP54 (ingress protection) rating means it's protected against low-pressure water spray from all directions and limited amounts of dust
• Operating temperature ranges of -30°C to +100°C with O-ring and -60°C to +200°C without O-ring for use in demanding environments

Applications

• Automotive manufacturing
• Machine building

Is this blanking plug for use with threaded or non-threaded holes?

This blanking plug is for threaded holes with a size of M25 x 1.5mm.

Can this blanking plug be used with an O-ring?

Yes. When the blanking plug is fitted with an O-ring it has an IP68 (ingress protection) rating, making indicating it's dust-tight and able to withstand 30 minutes of immersion in 1.5m of water

Drawing

Lapp Datasheet 4069413

Lapp Datasheet 4069413

4069413 Datasheet

Catalogue - Main catalogue 2020 - 21
