52103155, Lapp Blanking Plug, M40, Nickel Plated Brass, 44mm Diameter, Threaded, Пробка-заглушка

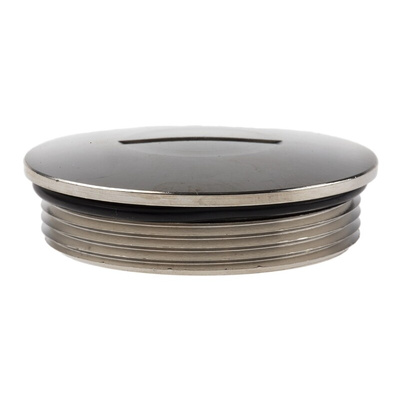

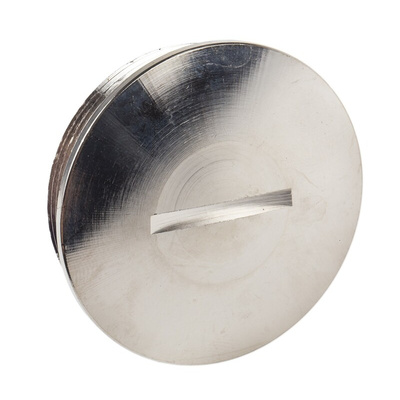

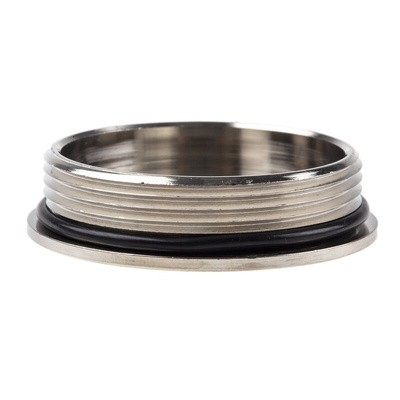

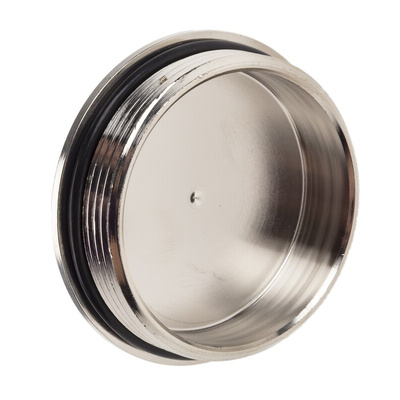

LAPP Blanking Plug, M40 x 1.5mm Thread Size - SKINDICHT BL-M Series - 52103155

Quickly seal a cable opening in a panel with this blanking plug from LAPP. Its simple, screw-in action makes it easy to close off a pre-drilled threaded borehole. It's ideal for protecting wiring and machinery components from dust and all you need is a screwdriver to assemble or remove the plug. As it's made of nickel-plated brass, the unit resists corrosion. It's also compatible with a broad operating temperature range between -30°C and +100°C, which makes it suitable for use in extreme conditions.

Features & Benefits

• Using the plug with the supplied O-ring creates an IP68-rated seal that's protected against dust and low-pressure water sprays
• Non-permanent plug that's easy to remove and reuse
• Made of nickel-plated brass for durability

Applications

• Machine manufacturing
• Electric motor industry
• Food and beverage industries

What's the operating temperature range without the O-ring?

Without the O-ring, the blanking plug's operating temperature range is -60°C to +200°C.

Drawing

Lapp Datasheet 4069435

Lapp Datasheet 4069435

4069435 Datasheet
