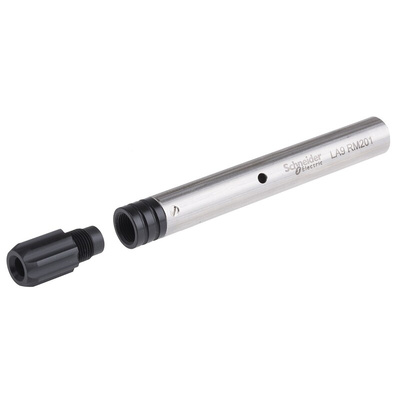

LA9RM201, Schneider Electric Harmony Control Series Electrode Level Probe, Cable Suspension

Zelio Level Relay accessory

Monitors the level of conductive fluids and controls actuation of pumps or valves to regulate levels. Also suitable for protecting submersible pumps against running empty, protecting tanks from overflow, controlling dosing of liquids in mixing processes and protecting heating elements in the event of non immersion
Settings protected by sealable transparent cover
One or two-probe operation
Probe voltage; 24Vac
LED supply and output indications
Selectable empty or fill functions
DIN rail mounting
H78 x D80 x W22.5mm
Coaxial probe comprises an active electrode and a reference electrode, diameter 16mm, length 150mm

Approvals

UL, CSA

Liquid Level Relays are used to monitor the levels of conductive liquids, and are available in Up/Down, Minimum, Maximum, and Fill/Empty variations. Liquid Level Relays are straightforward to install and safe to use.

Application Examples

Liquid Level Relays (Conductive Level Sensors) are used in a wide variety of applications including waste water management and the monitoring and management of corrosive liquid media, and designed specifically to provide for the:

Monitoring and control of liquid levels
Protection of pumps against dry running
Ability to detect liquid leaks in a system
Control of media mixing ratios
Control of liquid levels
