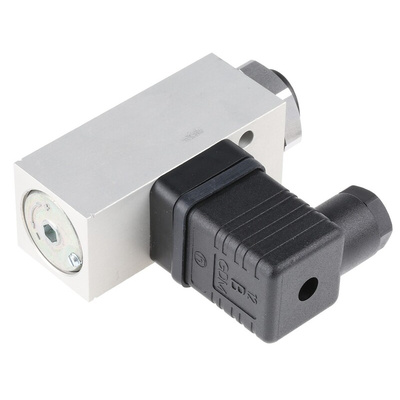

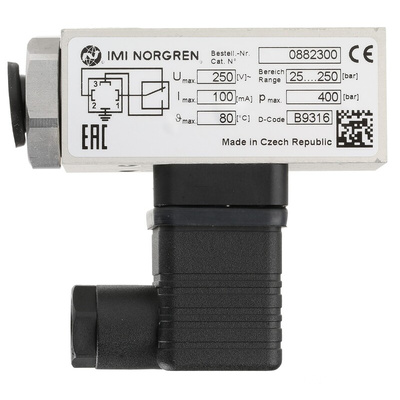

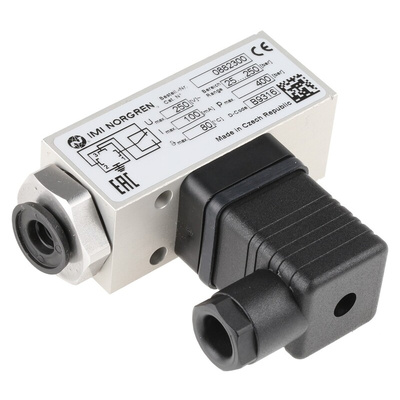

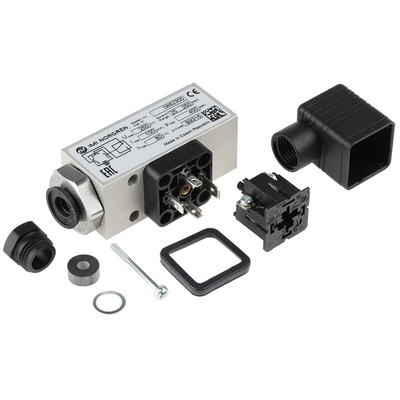

0882300, IMI Norgren Pressure Switch, G 1/4 25bar to 250 bar

Norgren Pressure Switch

The Norgren 18D series pressure switch has an operating pressure ranges between 25bar and 250bar. This is a positive pressure switch with a G1/4 thread connection. This electro-mechanical pressure switch is used for connecting and disconnecting electronic circuits utilizing pressure. It monitors minimum pressure and is equipped with automatic switch off and pressure limit warning. This switch is suitable for use in pneumatic, hydraulic and vacuum systems.

Pressure switches
Pressure switches that allow microswitch operation once a pre-set pressure is reached. K and K3 series incorporate a mechanical stop providing over-pressure protection for the spring and microswitch. Electrical connections for all the models to DIN 43650.
Warning:
Observe the switching range. Do not subject the switch to maximum allowable pressure during normal operation. Short pressure peaks must not exceed this value.

Features and Benefits

Gold-plated microswitch contacts
High number of switching cycles permissible
Designed for pressure monitoring in hydraulic systems
Designed to withstand vibrations up to 15G
Suitable for intrinsically safe operation

Certifications

IP65 rated
UL approved
CSA certified

Approvals

UL; CSA

Hydraulic pressure switch 18D Data Sheet
