Silfox Network Tester RJ11, RJ12, RJ45, SFXB, Тестер

Silfox SFXB Network Cable Tester

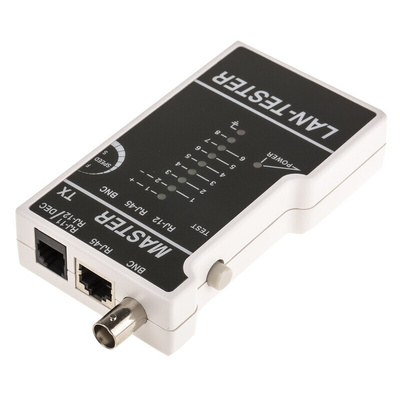

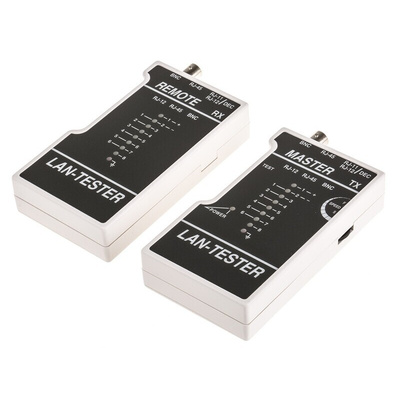

Featuring a master and remote unit able to test lengths of up to 300 meters, this LAN cable tester is compact and an ideal portable handheld tester.

Designed for testing open shorted, crossed, reversed, transpose, split and non-pair wiring, it also has the ability to test grounding. Used for RJ45, RJ25/Shielded, RJ45/Keyed, RJ12, RJ12/DEC, RJ11 and BNC. Both units come with a small zip locking PVC pouch for protection, along with a spare battery and 2 x 6 to 4 inserts.

Features and Benefits:

• 1.4A current rating
• Withstand voltage 1000V AC/Minute
• -40°C to 70 °C operating temperature

Frequently asked questions:

What is a LAN cable tester?
LAN testers are devices that allow a user to verify and test a connection or signal within a data cable (also known as LAN cables or high speed data cables). The types of tests include whether the cable is set up correctly, connected, the strength or speed of the signal being sent through the cable.

What is the difference between RJ45 & RJ11?
RJ45 is an 8-pin connector whereas RJ11 is only a 4 wire connector. RJ45 is used in Ethernet connections to connect computers to networks. RJ11 is more of a conventional telephone wire used to bring fibre into your house. RJ is the abbreviation of ’registered jack’.
