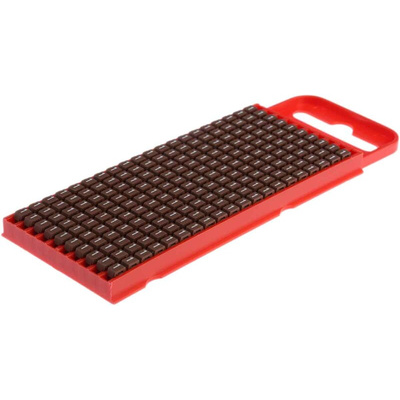

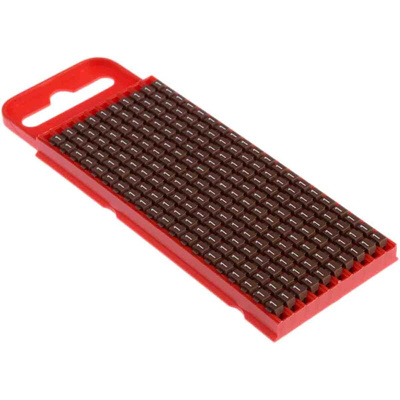

561-01611 WIC1-1-PA66-BN, HellermannTyton WIC1 Snap On Cable Markers, Brown, Pre-printed "1", 2 → 2.8mm Cable

WIC Snap-on Cable Markers

WIC markers are applied to the wire by simply clicking them on using the WIC tool or if no tool is available they can easily be applied by hand. Simply insert the marker strip into the back of the tool and slide down to the end and simply press the marker down over the wire. Twist off the marker and apply the next marker. Once all the markers are on slide them together until the locking mechanism engages. The markers are on a dispenser that is colour coded (Red, Blue or Yellow) for the different sizes of markers. The applicator tool (which can be used with all 3 sizes of markers) is easy to use and designed for use in confined space.

Features and benefits
• Fast and easy to use pre-printed nylon snap-on marker
• Ideal where termination is completed or for maintenance and repair
• Markers lock together to give perfect text alignment
• Vibration resistant markers
• Gripping system locks markers onto wire and resists rotation

HellermannTyton Cable Marker, 1 Legend, Brown Colour, 2 to 2.8mm Cable Diameter - WIC1 Series - 561-01611 WIC1-1-PA66-BN

Label your essential wires clearly with these easy-to-use cable markers from HellermannTyton. They're designed with a handy gripping system that means they won't slip or rotate, so your codes are easy to read. An operating temperature range between -40°C and +85°C ensures they're tough enough for use in harsh conditions.

Features & Benefits

• Compact dimensions ensure they take up minimal space in an enclosure
• Made of PA66 material for long-term durability and resistance to chemicals
• Locking mechanism fixes individual units together and maintains accurate text alignment
• Versatile design, as they're useable interchangeably with other markers in the range (such as 408-4563)

Applications

• Telecommunications equipment
• Industrial engineering
• Robotics systems

How do I attach these cable markers?

You can snap them on individually by hand or by using a WIC applicator tool (408-4917) that holds up to 20 markers at a time.

Datasheet - 561-01611 WIC1-1-PA66-BN
