S8TS-06024-E1, Omron S8TS Switch Mode DIN Rail Power Supply, 85 → 264V ac ac Input, 24V dc dc Output, 2.5A Output, 60W, Блок питания

25W to 60W S8TS Series

Range Features:

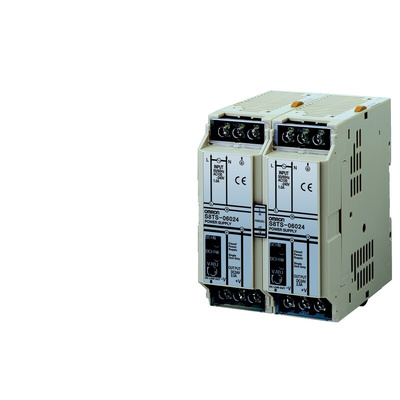

Modular units which can be connected together (4 unit’s max. on 24Vdc and 12Vdc, 2 units on 5Vdc)
Up to 10A max. output (+1 unit for redundancy -12V and 24V units only)
On board (bus style) connections for AC/DC (same DC voltages only)
DC outputs can be combined or used separately
DC voltage low indication and alarm on each unit
Overload/Over-voltage protection
EMI to EN50081-1, FCC-B
Under-voltage detection and LED indicator

Standards

EN60950, UL1950, CSA22.2-14-950.

Approvals

UL Recognised; UL Recognised for Canada

Part Number S8TS-06024-E1

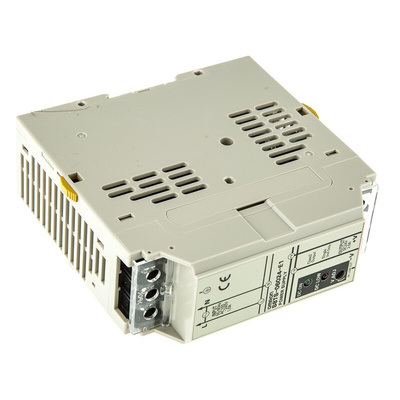

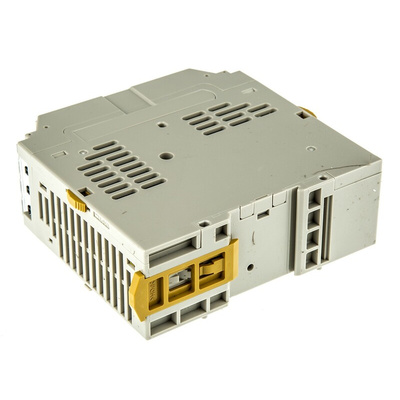

The S8TS Switch mode, Din Rail mounted power supply is a covered type, screw terminal basic block with Bus Line connectors. S8TS-06024-E1has a power rating of 60 W and an output voltage of 24 V dc plus a rated input voltage of 100 V ac to 240 V ac. This Standard undervoltage alarm model is natural air cooling.

Features and Benefits.

•Covered type power supply Basic block
•Screw terminal
•With Bus line connector terminals
•1 x S8T-BUS01, 1 x S8T-BUS02 connectors included
•DIN Rail Mounted
•Green output indicators
•Natural air cooling
•Power rating 60 W
•Output voltage 12 V dc
•Input voltage 100 V ac to 240 V ac
•Rated output current 2.5 A
•Harmonic current emissions
•Efficiency 80% min.
•Overload and over voltage protection
•Under-voltage alarm output – open collector, 30 V dc, 50 mA
•Weight 450g

Safety and Storage.

Do not use an inverter output for the power supply. Mount the power supply using a DIN Rail and secure correctly ensuring limited vibration and shock resistance. Install the power supply away from contactors and other devices. Keep the power supply away from strong high frequency noise and surge.
Vibration resistance 10 Hz to 55 Hz. 0.375 0.26 mm single amplitude in each 3 directions for 2 hours.
Shock resistance 150 m/s**2 in each 6 directions 3 times.

Approvals

UL Recognised; UL Recognised for Canada

Standards

UL 508 (Listing; class 2: Per UL 1310), 1950, 1604 (class I, division 2, groups A, B, C, D hazardous locations)
cUL: CSA C22.2 No 14, No.213 (class I, Division 2, groups A, B, C, D hazardous locations), No. 950 (class 2) ( class 2 approval does not apply to parallel operation)
EN/VDE: EN50178 (=VDE0160), 60950 (VDE0806)

UL E152784

UL REC FOR CANADA E152784
