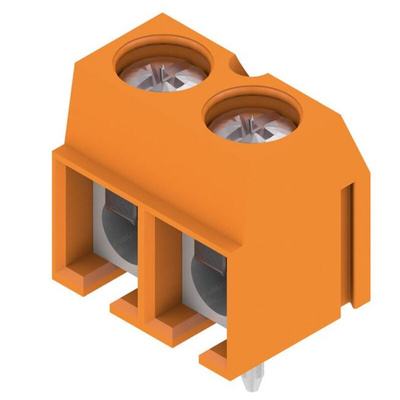

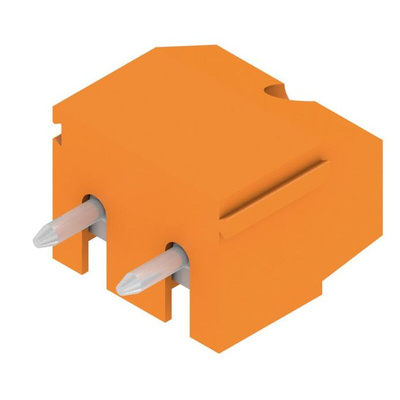

1760490000, Weidmuller PM 5.08 Series PCB Terminal Block, 2-Contact, 5.08mm Pitch, Through Hole Mount, 1-Row, Screw Termination

Weidmuller OMNIMATE PM Series 5.08mm PCB Terminal Blocks

OMNIMATE PM Series PCB terminal blocks with a 5.08mm pitch and side interlocking. These OMNIMATE 5.08mm PCB terminal block connectors have an M2.5 leaf spring screw clamp connection which accepts a wire size range of 26 to 14 AWG and a black UL 94 V-0 Wemid (PA) insulator.

Weidmuller PCB Terminal Block, 24A Current Rating, 10.76mm Width - PM 5.08 Series - 1760490000

Is your PC card getting crowded? Use this PCB terminal block from Weidmuller to simplify connections for a neater circuit system. It supports voltages up to 600V AC/DC, making it a match made in heaven for heavy-duty industrial equipment. You can mount it to your board and solder it in place for a secure connection. The IP20 rating indicates the component is touchproof and protected against tools and wires larger than 12mm in size. Thanks to its highly conductive and corrosion-resistant tinned copper contacts, you can trust data and power transmissions to zip along in a snap.

Features & Benefits

• Screw termination speeds up wiring for quick installation
• Bright orange colour makes it easy to spot in busy systems
• Slide interlocking design prevents the unit from shifting out of place
• Operates reliably in extreme environments, thanks to a wide operating temperature range of -50°C to +120°C

Applications

• Manufacturing sector
• Office blocks
• Utilities
• Telecommunications

What size screwdriver do I need to secure the wires?

Use any size 0 Phillips screwdriver to tighten the connection quickly. As you only need 0.5Nm of torque, it's a cinch to connect the wires.

Approvals

VDE; UL; CSA

Weidmuller OMNIMATE 5.08mm PCB Terminal Blocks

1.5mm Squared Multipole Connectors Technical Specifications

UL E170166

CSA 200039

Datasheet
