Fluke I1000S, Accessory Type AC Current Probe

Fluke 434 & 435 3 Phase Power Quality Analysers (3U+I)

Fluke power quality analysers help locate, predict, prevent and troubleshoot problems in power distribution systems and include many features to capture details to pinpoint problems quickly and safely. Troubleshooting is fast with on-screen display of trends and captured events, even while background recording continues.

Complete three-phase troubleshooting tool: measures voltage, current, frequency, power, unbalance and flicker, harmonics, inter harmonics, power consumption (Energy) and inrush
AutoTrend: Every displayed reading is automatically and continuously recorded without having to set up threshold levels or interval times
Displays trends in voltage, current, frequency, power, harmonics or flicker on all three phases plus neutral
Analyse the trends using the cursors and zoom function while background recording continues
System-Monitor: gives immediate insight into power system’s quality. Checks conformity to limits specified in EN50160 or to user defined limits. The overview is shown on a single screen, with colour-coded bars clearly indicating which parameters fall outside the limits
Inrush mode for troubleshooting nuisance circuit breaker tripping
Four channels: simultaneously measures voltage and current on all three phases and neutral
Meets EN61010-1 600 V CAT IV, 1000 V CAT III safety standard required for measurements at the service entrance.
Rugged, handheld instrument operates for more than 7 hours on included rechargeable NiMH battery pack
Complies with IEC 61000-4-30 measurement standards.
Stored measurements can be transferred to a PC to view graphs and generate reports with FlukeView software with OC4USB interface adaptor / cable (supplied)
Automatic transient display: captures up to 40 dips, swells, interruptions or transients automatically
8MByte memory, shared memory divided between logging, screens and datasets
Supplied with i400s ac current clamp (4 supplied) range 0.5A to 400A; , maximum conductor diameter 32mm. Safety rating CAT IV, 600V

Fluke 435 Advanced Features

Fully Class A Compliant - conduct tests according to the stringent international IEC 61000-4-30 Class A standard
Configure for any test condition with memory for over 400 parameters at user defined intervals
16MByte memory, shared memory divided between logging, screens and datasets
Measure interference from specific frequency signals with mains signalling function
i430 flexible current clamp (4 supplied as standard) range 30A to 3000A ac; , maximum conductor diameter 160mm. Safety rating CAT IV, 600V
C435, Hard carrying case with handle and wheels
PowerLog software

Current Clamp Options

i430Flex 3000A ac flexible current clamps (set of 4 supplied as standard with 435) range 30A to 3000A, maximum conductor diameter 160mm. Safety rating EN610101 CAT IV, 600V
i5sPQ3: 5Aac current clamps (3 in a set) range 10mA to 5A; maximum conductor diameter 15mm, Safety rating EN610101 CAT III 600V
i1000s, ac current clamp (sold individually) range 0.1A to 1000 A rms, maximum conductor diameter 54mm. Safety rating EN610101 CAT III 600V

Note

3 year warranty on Analyser units 434 & 435 only.

Supplied with

Hard carrying case (Fluke 434 with C434, Fluke 435 with C435 with handle and wheels), 4 current probes, 5 test leads and crocodile clips, NiMH battery charger, BP190 NiMH rechargeable battery (installed), FlukeView analysis (Fluke 434 and 435) & PowerLog software (Fluke 435 only), OC4USB optical USB cable, colour localisation set, quick start printed manual, user manual CD.

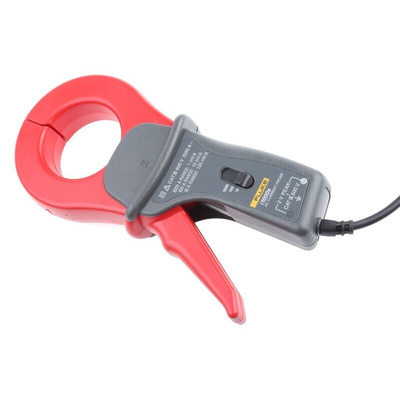

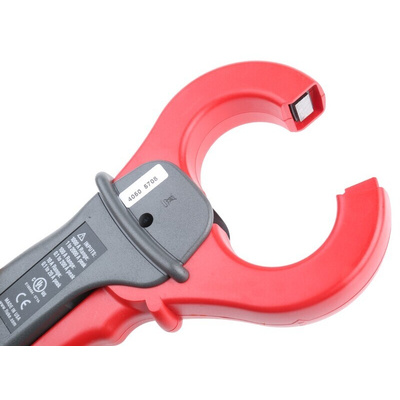

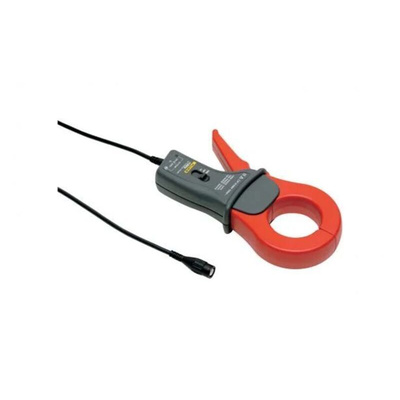

FLUKE Power Quality Analyser Probe For Use With 41B Series, 550g Weight, 1.6m Output Cable - I1000S

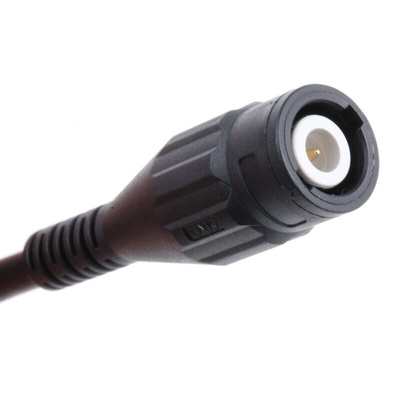

Stay one step ahead in your industrial evaluations with this power quality analyser probe from FLUKE. Its clamp-on design makes it possible to receive accurate current measurements without breaking the circuit. Designed to connect directly to a FLUKE 41B power quality analyser with a reinforced coaxial cable and insulated BNC connector, it's quick and easy to set up and use. As the probe has an in-built passive filter, it eliminates potential interference to deliver reliably accurate readings.

Features & Benefits

• Operating temperature range between -10ºC and +50ºC suitable for use in demanding industrial environments
• IP40 rating indicates protection against objects larger than 1mm, such as wires

Applications

• Aerospace engineering
• Electrical industry
• Warehouses and storage facilities

What instruments is this analyser probe compatible with?

The device is designed for use with FLUKE's 41B series. It's also compatible with any oscilloscope that will work with a BNC connector and has an input impedance of ≥1Ω.

How big is this probe?

The unit has small dimensions of 111 (H) x 216 (W) x 45mm (D), making it easily portable.

’Buy a Fluke, Get one Free’ is back!!
Between March 1st, 2024 and August 31st, 2024, the customer spends £150 or more on a qualifying Fluke product (Fluke Industrial, Fluke Calibration, Fluke Networks, or Beha-Amprobe).
Customer claims their tool online at: www.fluke.co.uk/freefluke
A proof of purchase in the form of a receipt or invoice is required.

I1000s Oscilloscope Clamp Calibration Manual

I1000s Oscilloscope Clamp User Guide

Datasheet

Datasheet - I1000S
