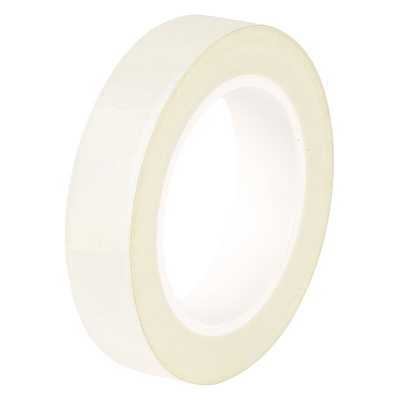

Advance Tapes AT4001 White Glass Cloth Electrical Tape, 25mm x 55m, Изоляционная лента

Advance Tapes Glass Cloth Tape

The Advance Tapes AT4001 class B white single-sided woven glass cloth tape with a rubber thermosetting adhesive. This is 0.18mm thick, 25mm wide and 55m long. It is used in electrical insulation of coils, insulation of square conductors in traction motors and generators as well as tensional strapping of coils and armature windings.

Features and Benefits

Very high-temperature resistance
High mechanical strength
Breaking load is 280N/cm
Adhesion to steel is 4N/cm
Breakdown Voltage 2.5kV
Elongation is 5%
Service temperature is from 0°C to +130°C

Applications

For electrical installation and repair work
Soldered joints and seams
Insulation of soldered joints, terminals, cable socket and conduction rails

Certifications

UL approved
BS EN 60454-3-8 type 2
ISO 9001
