DS-MIXT-05-RSU, TE Connectivity DuraSeal Service and Repair Heat Shrink Terminals and Splices Crimp terminal Kit

TE Connectivity Duraseal Terminal and Splice Service and Repair Kit 2

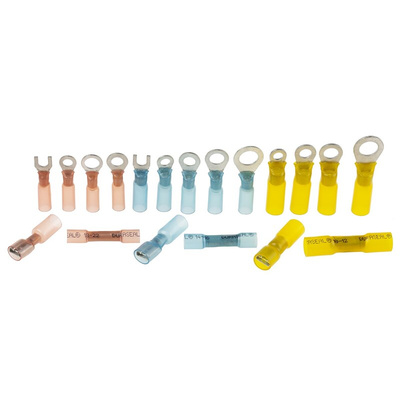

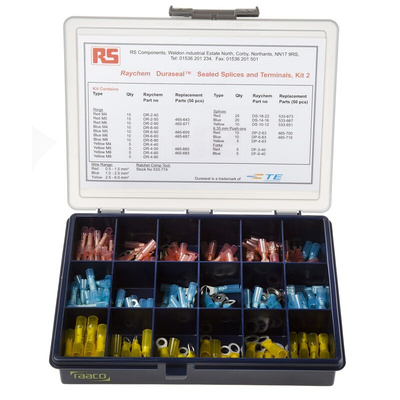

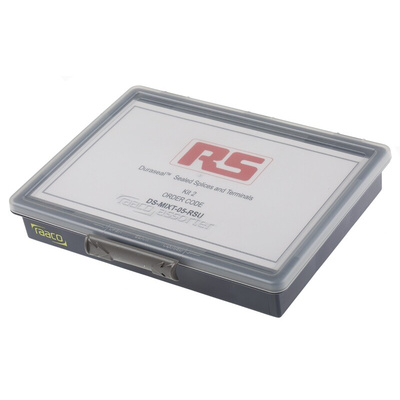

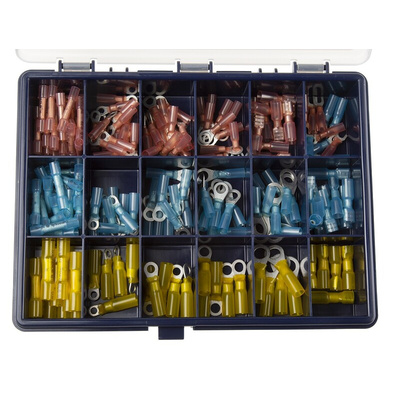

This handy Duraseal terminal and splice service and repair kit contains a range of insulated Duraseal terminals, with a wire size range of 0.5mm to 6mm² and in blue, red and yellow colours. This Duraseal terminal and splice service and repair kit comes in a sturdy plastic storage case with convenient compartments and a locking lid.

For details of kit contents please see table.

Approvals

UL

Duraseal Heatshrinkable

TE heat shrinkable pre-insulated nylon splices and crimp terminals provide reliable connections, especially where environmental sealing is important. Covering cable sizes from 0.5mm - 6.0mm², they are designed for use where water or condensation may be encountered, or where abrasion or mechanical abuse could be problematic. To complete a joint, the cable connector is crimped in the traditional manner, and the sleeving is then heated to shrink around the cable insulation. Special adhesive flows during the heating to seal the joint.

• The TE Duraseal kit is especially suited for use in automotive (approved by most car manufacturers) and marine builds, where environmental sealing is important
• Kits are also available comprising various heat-shrinkable pre-insulated nylon splices and terminals, covering ranges from 0.5mm² to 6.0mm².

Approvals

UL Listed

DuraSeal Heatshrinkable Product Data Sheet

Installation Procedure for Duraseal Splices und Terminals

TE Crimp Terminal Kits Comparison Table
