Time Electronic 1090 Multi Function Calibrator With UKAS Calibration, Калибратор

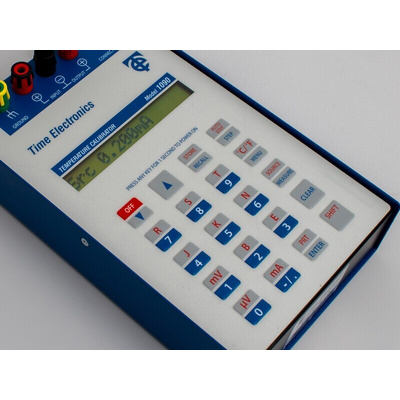

Temperature & mV/mA Calibrator 1090

A high performance portable instrument combining source and measure functions for thermocouples, Pt100, mV and mA.

Measures/simulates 8 thermocouple types J, K, T, R, S, B, N, E: Pt100, mV and mA
Displays in selectable units in °C/°F, uV/m
Large backlit super-twist LCD display, 7.5 mm digits
Sealed membrane keypad
Automatic or manual cold junction compensation
Memory storage of frequently used values
Sturdy carrying case with test lead compartment
Equivalent converted uV/Pt 100 resistance can be displayed on both source & measure
Rechargeable battery 50+ hrs use. Auto power save button
Auto step function with configurable step time
24V process loop drive mode

Note

Pt100 simulation: 14 set values to within ±0.1% of DIN43760, -100, -50, -20, 0, 20, 50, 100, 200, 300, 400, 500, 600, 700, 800 deg C.Pt 100 Measure: 20Ω (-200 °C) to 350Ω (700 °C) accuracy:±0.5%

Supplied with

carry case and mains recharger

1090 Temperature Calibrator User Manual

1090 Temperature and Process Calibrator Data Sheet
