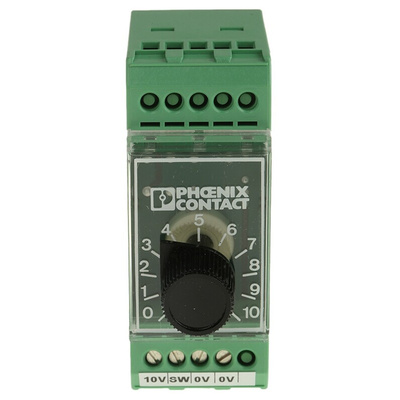

Phoenix Contact 10kΩ Potentiometer, 2942124

EMG 30-SP - setpoint value potentiometer

The setpoint value module enables setpoint values to be defined via standard potentiometers
DIN rail assembly

Phoenix Contact Potentiometer, 10kΩ Resistance Value, 0.5W Current Capacity - EMG 30-SP-10K LIN - 2942124

This Phoenix Contact potentiometer is a variable resistor that regulates the current flowing through a circuit. It picks up an input voltage and transfers it, controlling the amount of voltage by the position of the sliding contact wiper. Manually adjust the wiper using the central rotary knob to easily get the level you need.
The unit's compact dimensions of 30 (W) x 75 (H) x 68mm (D) make it easy to fit alongside other control modules in your setup. It mounts to a DIN rail assembly via the M3 threaded screw terminals to keep it securely fixed in place. With an operating temperature range between 0°C and +40°C, it's designed for use in moderate conditions.
Use this device to provide reliable electrical resistance to motor speed-controlled devices such as safety doors. Its converting signal conditioner function strengthens a signal transmission for industrial amplification or filtering out electrical noise.

• Robust, fibre-reinforced polycarbonate housing material resists shattering or snapping when subjected to impact
• Green housing for easy identification of your devices on a DIN rail
• Lightweight 53.65g construction puts little strain on its mount
• 10 kΩ resistance level with a ±20% tolerance for a wide load resistance range

Datasheet

4104724_Line Drawing
