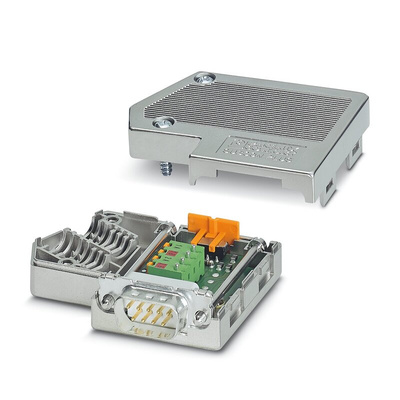

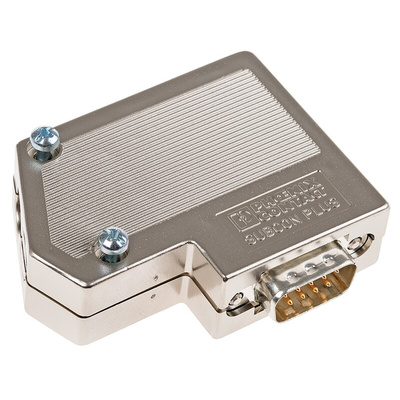

2744348, Phoenix Contact SUBCON-PLUS-PROFIB 9 Way Right Angle Cable Mount D-sub Connector Plug, Разъем

Phoenix Contact D-Sub Connector, 2 Cable Entries, PROFIBUS Connectivity - SUBCON-PLUS-PROFIB - 2744348

Make links in your board-mounted system with this D-sub connector from Phoenix Contact. It has highly conductive copper contacts that keep electricity moving, ensuring reliable power and data transmission. With two cable entries, the unit carries signals from two devices at once for efficient communication between machines. Assembly is done in a flash, as the unit is secured with Phillips screws. The body's 35° angle makes it a sure fit for data connections in awkward spaces.
Keen to link an appliance to your networking setup? This connector comes with PROFIBUS connectivity to loop equipment into standard industrial networks. You can connect and disconnect it up to 200 times without risking damage, meaning you get long-lasting connectivity. A regulation nine-pin design means the component slots right in with commonly used devices. The durable metal-plated ABS housing shrugs off bumps and scrapes, cutting the risk of damage from heavy handling.

Features & Benefits

• ATEX-certified for safe use in explosive environments
• Works with wires sized between 0.14 and 0.5mm², providing versatile connectivity
• Low power loss of just 0.025W to cut down on energy use and minimise waste heat

Note

2744348 SUBCON-PLUS-PROFIB

BUS connectors

Rewireable bus interface connectors suitable for Bitbus, CAN-Bus, Interbus-S (Fieldbus) and Profibus systems. Compact and high quality, the 9-pole sub-D housings are available in bus node or bus termination versions and are colour-coded for easy identification. Service nodes are also available for CAN-Bus and Profibus systems, allowing online programming and repair. Each interface comes with detailed assembly instructions and mounting accessories.

Available in versions with horizontal or vertical cable outlets
Fast and reliable connection via screw terminals on the PCB
Bus terminations include SMT termination resistors
Colour-coded bodies aid installation and repair
Safe ESD protection thanks to fully insulated housings
Supplied with reliable crimp strain relief

Datasheet 2744348

2744348 Installation Instructions

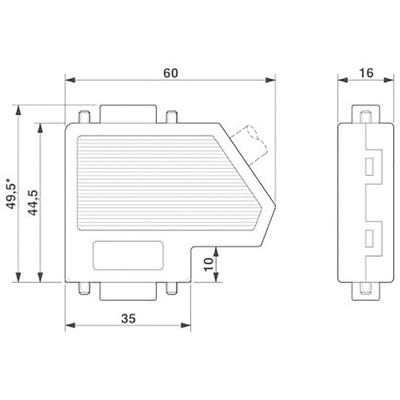

Line Drawing - 2744348
