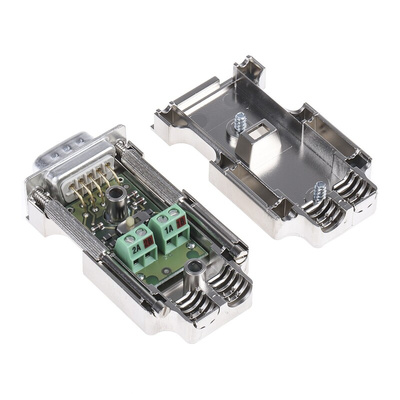

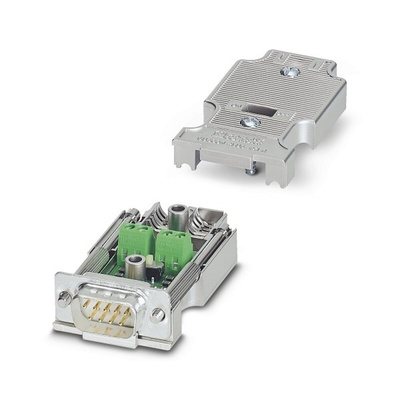

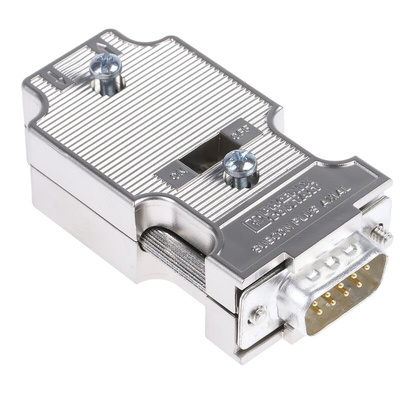

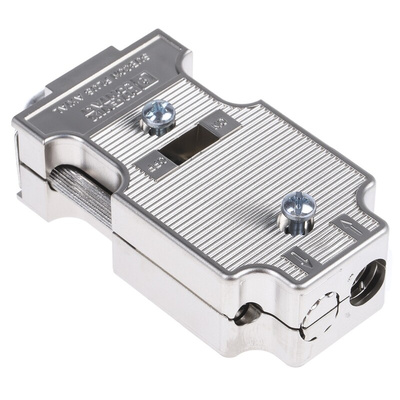

2744380, Phoenix Contact SUBCON-PLUS-PROFIB/AX/SC 9 Way Cable Mount D-sub Connector Plug, 2.77mm Pitch, Разъем

Phoenix Contact D-Sub Connector, 5V Nominal Voltage, 100mA Nominal Current - SUBCON-PLUS-PROFIB/AX/SC - 2744380

Want to make a straightforward connection between your PC and a monitor? Add this D-sub connector from Phoenix Contact to your setup. You can use it to connect your display to your computer in a jiffy without worrying about loose wires. Once plugged in, the unit transfers data reliably, thanks to its highly conductive copper alloy contacts.
A metal-plated chassis adds the dimensional stability and durability you need in demanding environments. EMI is also a thing of the past, thanks to the connector's ABS insulation. With a mean time to failure of up to 6,706 years and an insertion and removal rating of 200 times, you can rest easy knowing this is a long-lasting option. You'll find it frequently used to carry signals between drivers, sensors and PLCs on the PROFIBUS network.

Features & Benefits

• Screw connection speeds up wiring
• IP40-rated, so is touch-proof and safe to handle
• Performs reliably in harsh temperatures from -20°C to +75°C
• Light weight of 51.16g won't pull against your PCB or put strain on your equipment
• Wide wire size range of 26 to 16AWG for versatility

Note

2744380 SUBCON-PLUS-PROFIB/AX/SC

BUS connectors

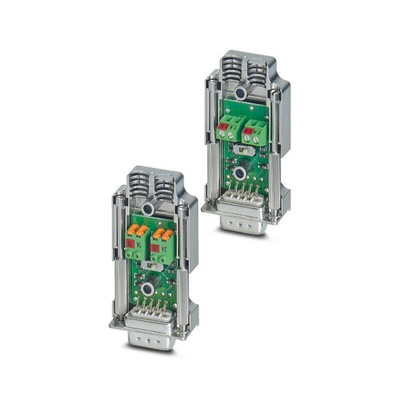

Rewireable bus interface connectors suitable for Bitbus, CAN-Bus, Interbus-S (Fieldbus) and Profibus systems. Compact and high quality, the 9-pole sub-D housings are available in bus node or bus termination versions and are colour-coded for easy identification. Service nodes are also available for CAN-Bus and Profibus systems, allowing online programming and repair. Each interface comes with detailed assembly instructions and mounting accessories.

Available in versions with horizontal or vertical cable outlets
Fast and reliable connection via screw terminals on the PCB
Bus terminations include SMT termination resistors
Colour-coded bodies aid installation and repair
Safe ESD protection thanks to fully insulated housings
Supplied with reliable crimp strain relief
