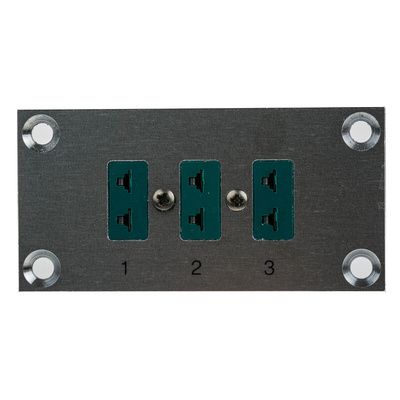

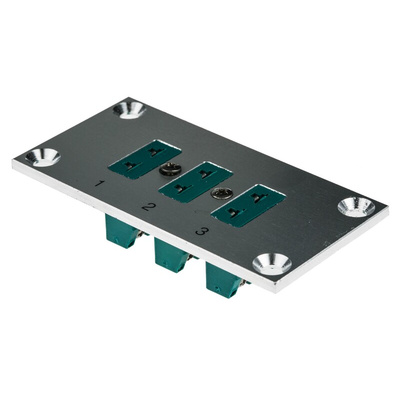

R9-1787, Reckmann Panel Mount Thermocouple Connector Panel for Use with Type K Thermocouple, Standard

Plug connection panels for miniature connectors

For control panel or device installation
For single and multiple measuring circuits
For temp. up to 200 °C
Front plate made from anodised aluminium

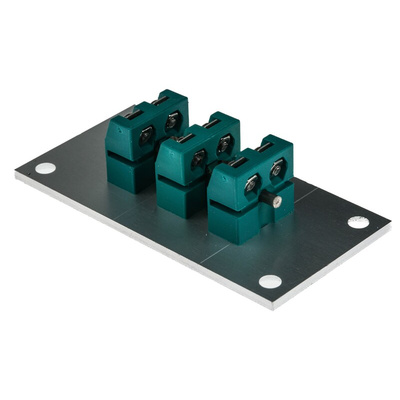

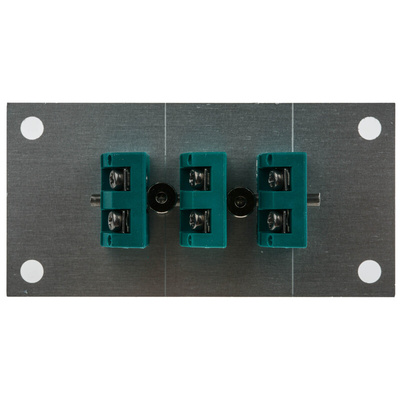

Flat sockets made of thermal material, with screw terminals
Suitable for miniature compensation connectors

Thermocouple Junctions (Type K, N, T, J & R)

Colour-coded according to IEC 584-3 1989 / BS4937 Part 30 1993
Standard and miniature connections
For thermocouples, extension cables and compensating cables
Enable connections without thermoelectromotive force being introduced
All contacts are polarised to prevent reverse polarity
Fully compatible with thermocouples and thermocouple conducting components of the same type
Line pairs (plug and socket) are also available for type K and T (miniature version only)

Additional parts for mineral-insulated thermocouples
