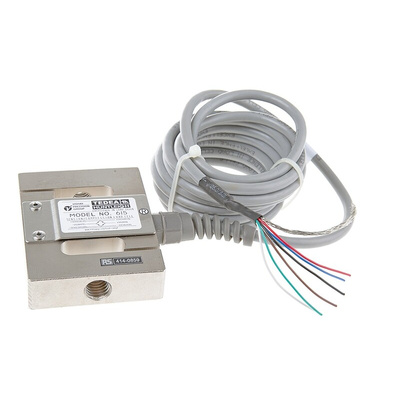

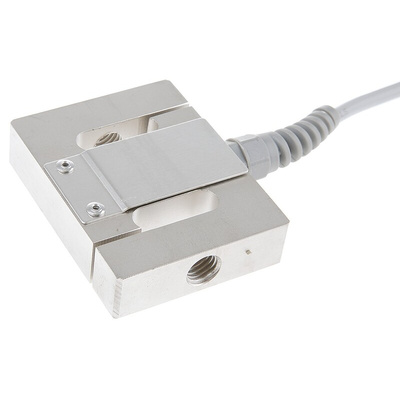

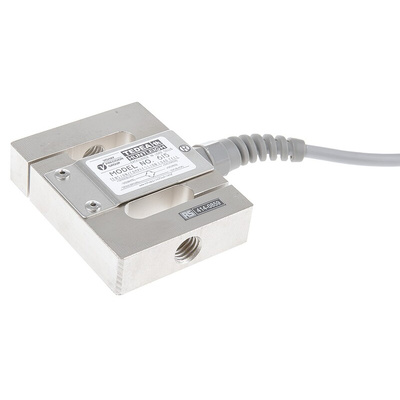

0615-0200-G000-RS, Tedea Huntleigh S Type Load Cell, 200kg Range, Compression, Tension Measure

Tedea Huntleigh Compression & Tension Load Cell "S" Beam Type 200/300kg

Features and Benefits:

Output impendence 350Ω
Input Impedance 400 ±20Ω
Safe overload 150% rated capacity
Ultimate overload 300% rated capacity
For use in tension and compression
6 wire (sense) circuit
Bridge signal conditioners available separately
For Output signal conditioners see stock no. 470-272
Dimensions 62 x 80 x 18mm
The additional sense wires compensate for changes in lead resistance due to temperature changes and/or cable extension.

Typical Applications:

Force measurement,
material testing machines,
conversion of mechanical scales to electronic,
hanging scales, hoppers

FAQs:

What thread does it have?
This is 1/2 Inch UNF
