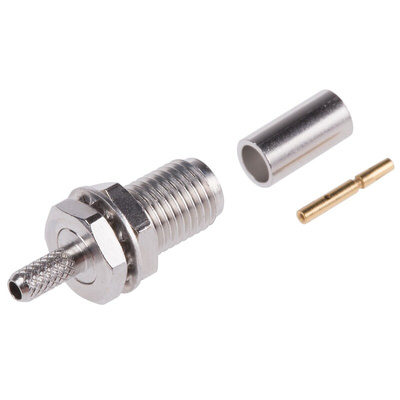

R124313120W, Radiall, jack Panel Mount SMA Connector, 50Ω, Crimp Termination, Straight Body, Разъем

Bulkhead Jack Crimp

White Bronze body plating
Centre contacts require soldering

Note

Where cable RD316 is shown in table, this is a double-screened cable.

Bulkhead jack

Approvals

-

Radiall SMA Commercial

SMA crimp termination types for use with a variety of flexible and semi-rigid cables
Cable plugs in captive contact form for mechanical reliability in adverse conditions, or non-captive form for optimum electrical performance
Bulkhead and panel types have captive contacts
Centre contacts require soldering unless otherwise stated
Connectors are available in gold plated and white bronze plated brass
End terminations and attenuators are in nickel plated brass

Straight Bulkhead Jack Full CrimpType Technical Data Sheet
