R124426123W, Radiall, jack PCB Mount SMA Connector, 50Ω, Solder Termination, Straight Body, Разъем

Radiall 50 Ohm SMA-COM RF Coaxial PCB Jack, Solder

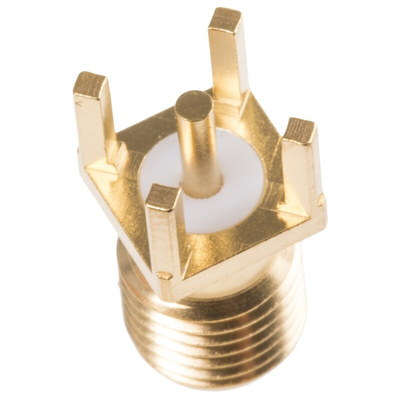

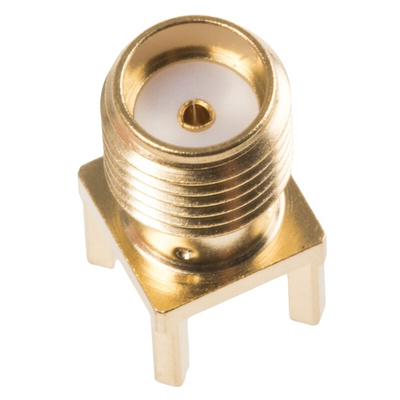

50 ohm SMA-COM RF coaxial PCB mount jack receptacle with solder legs. This 50 ohm SMA-COM RF coaxial PCB mount jack has a gold over nickel plated brass body, a gold plated centre contact and a PTFE dielectric.

Straight PCB
jack

Approvals

-

Radiall SMA Commercial

SMA crimp termination types for use with a variety of flexible and semi-rigid cables
Cable plugs in captive contact form for mechanical reliability in adverse conditions, or non-captive form for optimum electrical performance
Bulkhead and panel types have captive contacts
Centre contacts require soldering unless otherwise stated
Connectors are available in gold plated and white bronze plated brass
End terminations and attenuators are in nickel plated brass

Straight Jack Receptacle for PCB Technical Data Sheet
