9019160000, Weidmuller Insulated Crimp Bootlace Ferrule, 8mm Pin Length, 2.2mm Pin Diameter, 2.5mm² Wire Size, Blue, Наконечники

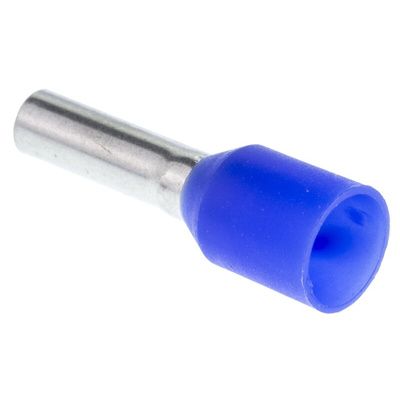

Weidmuller Crimp Bootlace Ferrule, Blue Colour, PP Insulation Material - 9019160000

Need to terminate your stranded wire? This Weidmuller crimp bootlace ferrule will do the trick. By popping it over stripped wiring, you'll get a trusty connector for attaching to screw or spring clamps. Begin by stripping 10mm of insulation, then thread the strands into the ferrule's collar. Place the metal tube into your crimping tool and squeeze the handles firmly, and your crimped cable is ready to go.

Features & Benefits

• Accommodates a wire size of 14AWG for broad compatibility
• Light weight of 0.144g to place minimal strain on your setup
• PP insulation to minimise the risk of electric shock
• Blue colour for ease of identification in a colour-coded system

Applications

• Poke-in and row clamp connections
• Control units
• Switching cabinets

What are the dimensions of this unit?

Each ferrule has a total length of 15mm. The contact surface is 8mm long with a small diameter of 2.2mm, so it's a good choice for use in tight spaces.

How many ferrules come in a bag?

These ferrules come in bags of 500 units, so you'll have plenty in stock for use in multiple jobs.

Datasheet
