PXB-B3111B, Parker Plunger 3/2 Pneumatic Manual Control Valve PXB Series, Клапан

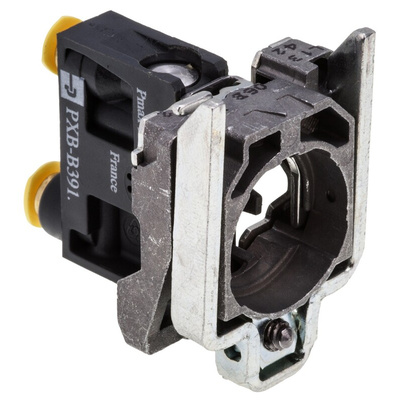

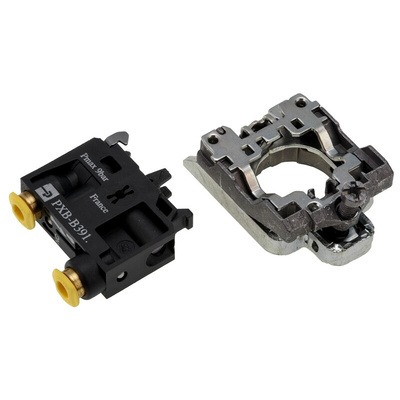

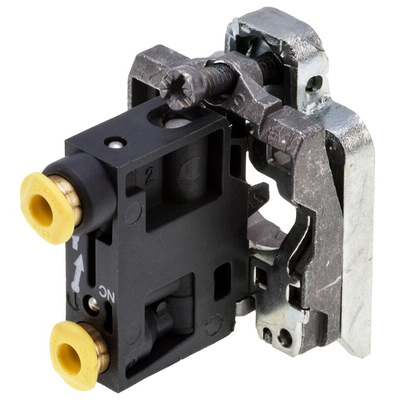

Parker Valve And Electrical Contact Block

The Parker PXB series 3/2 port valve has a switching type of NNP. This valve and electrical contact block with a mounting ring provides reliability for your pneumatic installations. This valve has a modular construction and contact blocks allow a flexible configuration. It is a plunger-actuated spring return valve and is used with ZB4 operating heads. It is possible to mount up to three valves on the mounting ring for pushbuttons. You can mount up to two valves on the mounting ring for selector switches and valves cannot be mounted in the centre position.

Features and Benefits

instant connections of 5/32in
Maximum operating pressure is 9bar
Maximum flow rate is 60L/min
Operating temperature ranges between -15°C and 60°C
Simultaneous actuation of an electrical contact and a pneumatic valve is possible via the electrical contact block
High-quality manually operated spool valves and Viton seals
Suitable for positive pressure or vacuum line applications

Spring return push buttons valves Data Sheet
