FGC1513.2, DBK Enclosures Enclosure Heater, 100 → 240V ac, 150W Output, 72°C, 107mm x 42mm x 42mm, Обогреватель

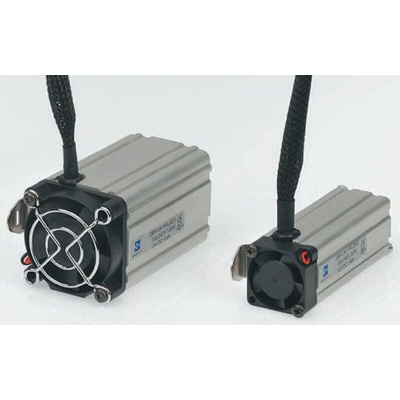

DBK Cirrus Series PTC Forced Convection Heaters

DBK Cirrus series PTC forced convection heaters feature fast response times that plateau once the pre-defined reference temperature is reached. Small and versatile, DBK Cirrus heaters are an ideal choice for a variety of application requirements.

Heater incorporating an axial fan High power to size ratio Lightweight Easy to fit Pre-wired Independent fan circuit to aid climate cooling (24 Vdc) Separate supplies required for fan and heater Heater starting current >10A except for 415-2931 (2.19A) Fan only operation is possible Self-regulating PTC heating elements 600mm leads

Features and Benefits:

Note

Below 140Vac/dc heating performance is reduced by approx 10%Mount with fan at bottom

DIN Rail Mount Enclosure Heaters

Heaters specifically intended for anti-condensation and frost protection in control and equipment cabinets. All types are supplied with DIN rail mounting hardware.

Cirrus 25/40 Heater Data Sheet
