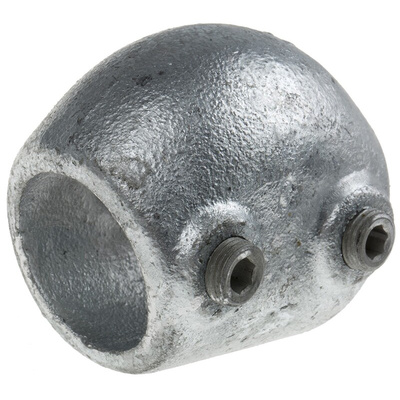

RS PRO 15 to 60 Degree Elbow Connecting Component, Strut Profile Type 1, Round Tube Size Type 1

Variable Elbow 15° to 60°

Allows a staircase rail tube to be fixed at any angle between 15° and 60° from the horizontal
Alternative to bending the tube

Note

The 'selection guide' table links the alphabetical key in the illustration to the specific fittings (a typical stock number is also quoted).

Standards

BS 1387

Staircase Fittings

The line drawing illustrates some typical applications of the fittings for the construction of staircase handrails.

For Tube Size Refs. 1, 2 and 3.

The 'selection guide' table links the alphabetical key in the illustration to the specific fittings (a typical stock number is also quoted).

Note

The 'selection guide' table links the alphabetical key in the illustration to the specific fittings (a typical stock number is also quoted).

Datasheet
