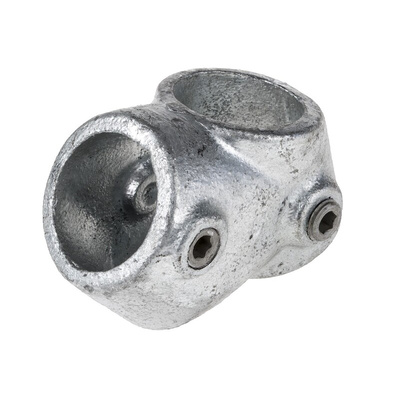

RS PRO T-Connector Connecting Component, Strut Profile Type 1, Round Tube Size Type 1

Adjustable Short Tee 30° to 60°

Versatile components used to form staircase handrails but also can be used for struts and braces

Note

The 'selection guide' table links the alphabetical key in the illustration to the specific fittings (a typical stock number is also quoted).

Standards

BS 1387

Staircase Fittings

The line drawing illustrates some typical applications of the fittings for the construction of staircase handrails.

For Tube Size Refs. 1, 2 and 3.

The 'selection guide' table links the alphabetical key in the illustration to the specific fittings (a typical stock number is also quoted).

Note

The 'selection guide' table links the alphabetical key in the illustration to the specific fittings (a typical stock number is also quoted).

Datasheet
