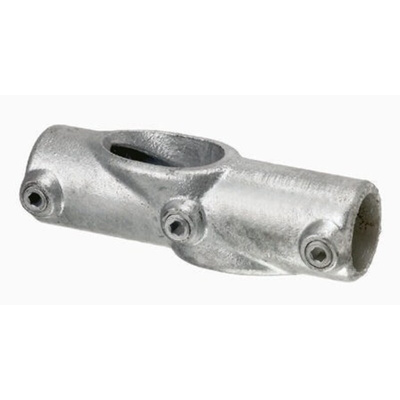

RS PRO Cross Clamp Connecting Component, Strut Profile Type 2, Round Tube Size Type 2

Two-socket Cross 30° to 45°

Joins mid rails to an intermediate upright at any angle between 15° and 60° from the horizontal

Note

The 'selection guide' table links the alphabetical key in the illustration to the specific fittings (a typical stock number is also quoted).

Standards

BS 1387

Staircase Fittings

The line drawing illustrates some typical applications of the fittings for the construction of staircase handrails.

For Tube Size Refs. 1, 2 and 3.

The 'selection guide' table links the alphabetical key in the illustration to the specific fittings (a typical stock number is also quoted).

Note

The 'selection guide' table links the alphabetical key in the illustration to the specific fittings (a typical stock number is also quoted).
