RS PRO T-Connector Connecting Component, Strut Profile Type 2, Round Tube Size Type 2

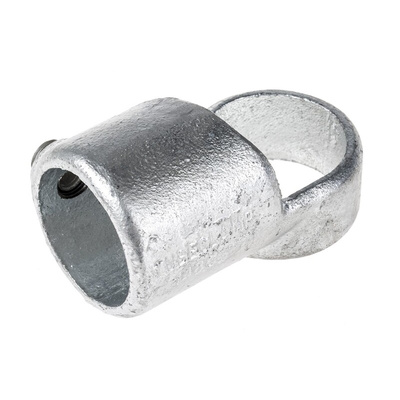

Short Swivel Tee

Short Swivel Tees enable variable corner joints between 85° and 235° to be made between matching size structural system tubing. A corner joint link requires a pair of tees.

Note

'Dimension B' relates to the dimension shown on the corresponding line drawing, and should be used in conjunction with the structural system Tube Size Ref. quoted, specific to each stock no. indicated.

Standards

BS 1387

Staircase Fittings

The line drawing illustrates some typical applications of the fittings for the construction of staircase handrails.

For Tube Size Refs. 1, 2 and 3.

The 'selection guide' table links the alphabetical key in the illustration to the specific fittings (a typical stock number is also quoted).

Note

The 'selection guide' table links the alphabetical key in the illustration to the specific fittings (a typical stock number is also quoted).
