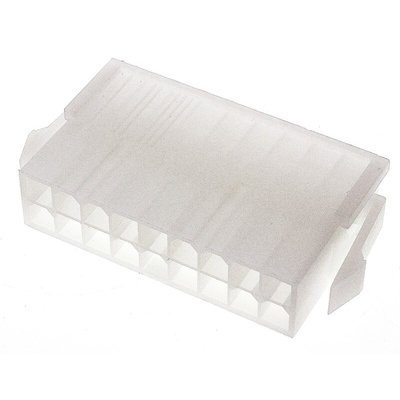

39-01-2181, Molex, Mini-Fit Jr Male Connector Housing, 4.2mm Pitch, 18 Way, 2 Row, Корпус разъема

Molex Mini-Fit Junior Crimp Receptacle and Plug Housings

Mini-Fit Junior 4.2 mm pitch connector housings form part of the Mini-Fit Junior power connector’s interconnection system. Molex connector housings can be used in applications that require design flexibility. These types of fittings are an essential component that offer protection for the connection it is housing.

Features and Benefits

• Handle Up to 13A current per circuit, a great solution for high current connectors
• Fully isolated terminals for protection against debris and damage caused by mishandling
• Polarization and keying to prevent mismating ad misalignment
• Positive locking mechanism for secure mating connection prevents accidental unmating caused by excessive shock or vibration
• Audible click for mating confirmation
• Available with a flame retardant UL94V-0 or UL94V-2 housing material
• Accepts standard Mini-Fit and Mini-Fit Plus crimp terminals
• Wire to wire and wire to board applications

Molex Connector Housing, Nylon Material, Cable Mounting - 5559 Series - 39-01-2181

Need to protect electrical connections. Get them under cover with this connector housing from Molex. It handles up to 18 connections as it has two rows of nine single contacts. A flexible design means this male housing keeps your signals flowing, whether you use it for wire-to-board or wire-to-wire connections. It's made from a sturdy nylon material that resists chemicals and wear. Installation is a breeze thanks to a positive locking system with an audible click that lets you know you've got it right.

Features & Benefits

• Handles high-powered connections with a current rating up to 13A per contact when mated
• Performs in demanding environments with an operating temperature range between -40°C and +105°C

Applications

• Medical devices
• Automotive manufacturing
• Data transfer systems

What pitch does this housing have?

It has a 4.2mm pitch that puts plenty of space between each connection for electrically safe use.
