RS PRO Wrist ESD Tester, With RS Calibration, Тестер

Portable Wristband Tester

Easy to use wristband tester
Designed to check that the wristband is working and is in good contact with the wearers skin
Checks between 750kΩ to 35MΩ
Terminals: 10mm stud, 4mm banana and post for croc clip
Audible noise on pass

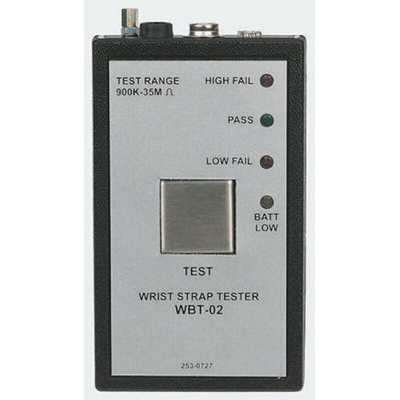

RS PRO Wrist ESD Tester

The RS PRO compact wrist strap tester can be used to test the integrity of wrist straps, commonly used to protect personnel from electric shocks in ESD (Electrostatic Discharge) protected workstations by providing a quick connection to the ground. LEDs and an audible alarm indicate whether the measured resistance is within the range specified by EN 61340-5-1, which is the accepted ESD protection standard for IEC (International Electrotechnical Commission) member countries.

This tester is lightweight, portable and is powered by a 9 V PP3 battery. It can check whether the wristband is working and fitted properly on the wearer in the range of 750 k Ω to 35 M Ω resistance. It works safely at operating temperatures between +5°C and +30°C

ESD Protect Areas (EPAs), such as assembly or repair benches in ESD-sensitive device applications, require daily use of an ESD Tester for compliance with EN 61340-5-1 standards.

Features and Benefits

• RS PRO ESD tested for wrist straps
• Produces audible alarm for indication
• Powered using 9 V PP3 battery for portability
• Suitable for testing in the range of 750 k Ω to 35 M Ω resistance
• Complies with EN 61340-5-1 standards for safe usage in EPAs
• Height of 115 mm
• Depth of 26 mm

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.
