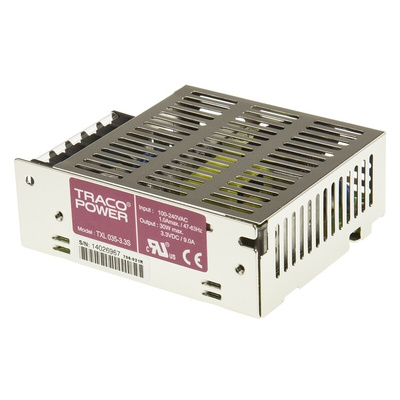

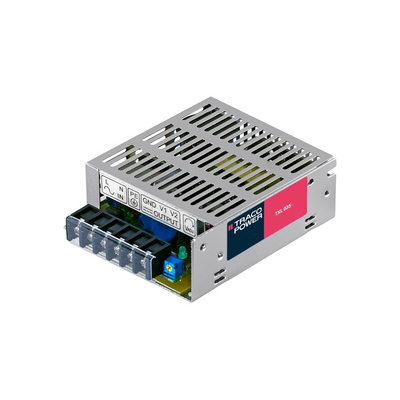

TRACOPOWER Switching Power Supply, TXL 035-3.3S, 3.3V dc, 9A, 35W, 1 Output, 120 → 375 V dc, 85 → 264 V, Источник питания

15W to 600W, Universal Input, Single/Multi Output, TXL Series

The TRACOPOWER TXL series is a family of encased power supplies, designed for a wide range of cost critical industrial applications. Wit a low profile metal case and screw terminal block connection they are easy to install in any equipment. These power supplies have Universal Input 85-240VAC and comply also with European EMC standards and the Low Voltage Directive (LVD). The high quality of this product is supported by a 3 year warranty.

Wide range universal input
Compact design, metal case
Easy installation - screw terminals
Short circuit and overvoltage protection
Power factor correction to EN 61000-3-2 (PFC)
EMI/EMC complies to EN 50081-1 and EN 50082-1

Note

De-rating 2% per °C above 45°C (2.5% per °C for TXL220 types).
TXL 120 series is not recommended for new designs, please refer to TXL 100 series for suitable alternatives

Caution

Total power must not exceed specified max. output power for Multi Output models

Standards

UL 60950-1, IEC 60950-1, EN 60950-1 2nd edition

Approvals

UL, cUL, CB report

TXL 035 Installation Instructions

TXL 035_050_060 CB Series Test Certificate

TXL UL Certificate of Compliance

TXL 035-3.3S Datasheet

Industrial Power Solutions Catalogue

Selection Guide
