TRACOPOWER Switching Power Supply, TXL 035-12S, 12V dc, 3A, 35W, 1 Output, 120 → 375 V dc, 85 → 264 V ac, Источник питания

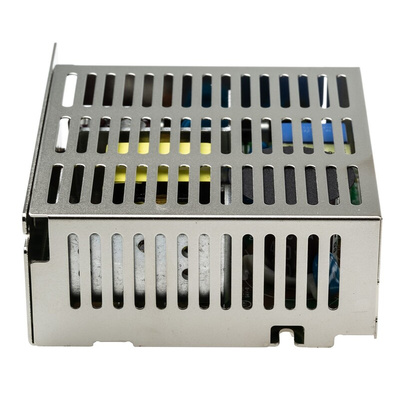

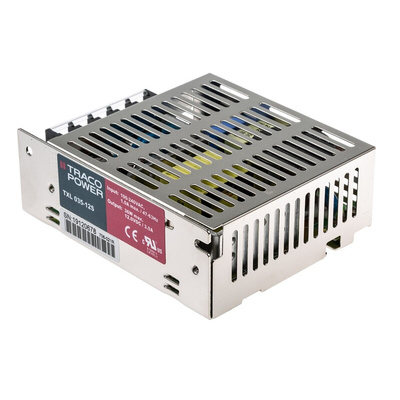

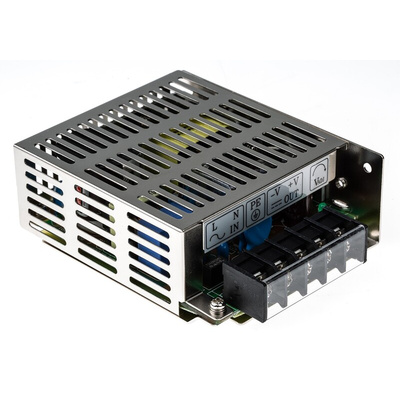

Traco Power Switching Power Supply, 36W Maximum Power Output, Screw Terminal Block Connection - TXL 035 Series - TXL 035-12S

Need to make sure your circuits stay stable? Keep things on the level with this switching power supply from Traco Power. It provides your electrical parts with a usable voltage by converting 85 to 264V AC inputs into a 12V DC output, so it's handy for industrial and domestic applications. Thanks to a mean time between failures greater than 400,000 hours, you can count on this power supply to go the distance. A high efficiency of 82% makes it an energy-saving choice that doesn't generate excess heat during the conversion process.

Features & Benefits

• Nickel-plated steel housing is corrosion-resistant for a long service life in humid settings
• Integral short-circuit protection for electrical safety
• Wide operating humidity range between 20 and 90% RH means it can withstand high levels of non-condensing water vapour

Applications

• Machine tooling
• Security systems
• Personal computers

Does this unit accept DC inputs?

Yes. This switching power supply accepts DC inputs between 125 and 375V for added versatility.

What temperature range is this unit designed for?

The power supply can withstand temperatures between -20°C and +70°C, so it's a handy option for tough conditions.

TXL 035 Installation Instructions

TXL 035_050_060 CB Series Test Certificate

TXL UL Certificate of Compliance

TXL 035-12S Datasheet

Industrial Power Solutions Catalogue

Selection Guide
