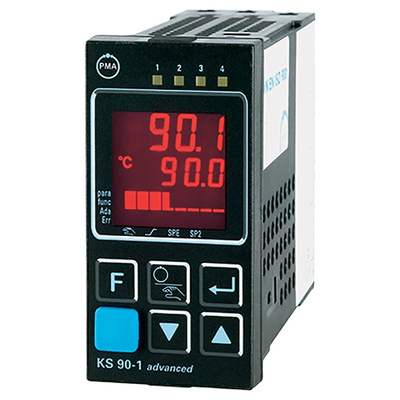

KS90-104-0000D-000, P.M.A KS90 PID Temperature Controller, 48 x 96mm, 4 Output, 90 → 250 V ac Supply Voltage, Регулятор температуры

P.M.A PID Temperature Controller, 100ms Cycle Time, PROFIBUS-DP Interface - KS90 Series - KS90-104-0000D-000

Regulate the temperature in your equipment using this PID temperature controller from P.M.A. It has a triple-point regulator that acts as a thermostat. This switches on an attached heater when the preset value falls below minimum or turns on a cooler as soon as the temperature rises above maximum. These actions protect your machinery from overheating or freezing to ensure uninterrupted operation. The controller's glass fibre-reinforced body is self-extinguishing, so it won't spread flames in the event of a fire. Thanks to a cycle time of 100ms, you can be sure of minimal system downtime and optimum productivity.

Features & Benefits

• IP65-rated front panel is dustproof and able to withstand low-pressure water jets
• Broad operating temperature range between -20°C and +65°C for use in challenging environments
• Screw clamp terminals make installation quick and easy without the need for complex tools

Applications

• Laboratory instruments
• Heat treatment plants
• Process and packaging equipment

How much space does this device take up?

This device has dimensions of 96 (H) x 48 (W) x 118mm (D), so it's a space-saving option for installation in compact systems.
