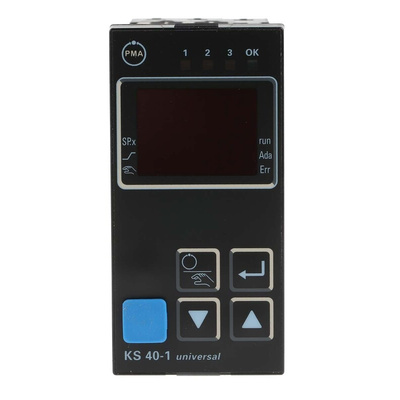

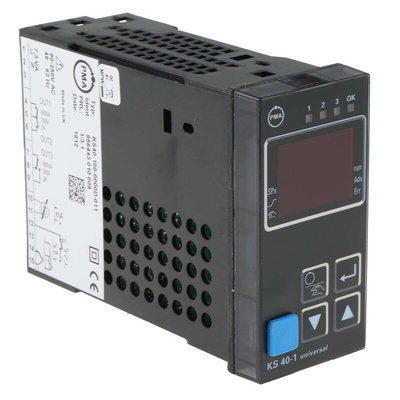

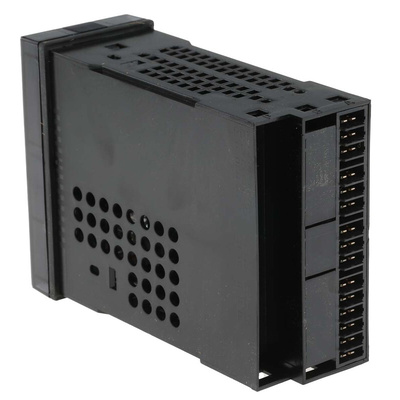

KS40-100-0000D-000, P.M.A KS40 Panel Mount PID Temperature Controller, 96 x 48mm, 3 Output, 90 → 250 V ac Supply Voltage, Регулятор температуры

P.M.A PID Temperature Controller, 100ms Cycle Time, 2-Point Measurement Correction Type - KS40 Series - KS40-100-0000D-000

Looking for a way to control the temperature of your industrial process? Choose this PID temperature controller from P.M.A. Taking data from sensing devices, it monitors the heat readings in your system and makes changes to ensure that the level stays as close as possible to your chosen setpoint. You can adjust the setpoint between -100°C and +1760°C when using it with thermocouples and -200°C to +850°C with resistance transducers, so it's a versatile choice. As it's a plug-in module, this DIN-rail-mounted controller is easy to install without the need for specialist tools.

Features & Benefits

• Compact dimensions of 48 (W) x 96 (H) x 118mm (D) take up minimal space
• IP65-rated front panel for resistance to dust and low-pressure water jets
• Supply voltage rating of 90 to 260V AC, so it's safe to use in powerful electrical applications
• LED system to allow for convenient monitoring of output states
• Wide operating temperature range between -20°C and +65°C for use in demanding environments

Applications

• Industrial furnaces
• Chemical engineering
• Pharmaceutical development

Can I control voltage signals with this unit?

Yes. In addition to temperature, you can use it to control current and voltage signals in a selectable range between -1999 and 9999.
