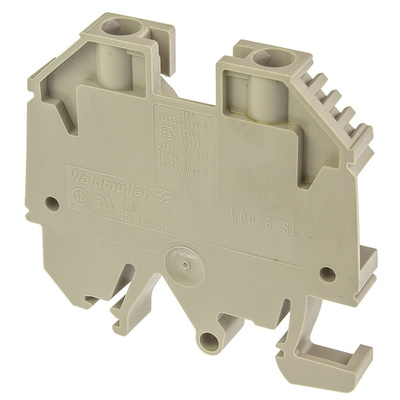

9537470000, Weidmuller WDU Series Brown Feed Through Terminal Block, 6mm², Single-Level, Screw Termination

Weidmuller Feed-Through Terminal Block, 45A Current Rating, 20 to 8AWG Wire Size Range - WDU Series - 9537470000

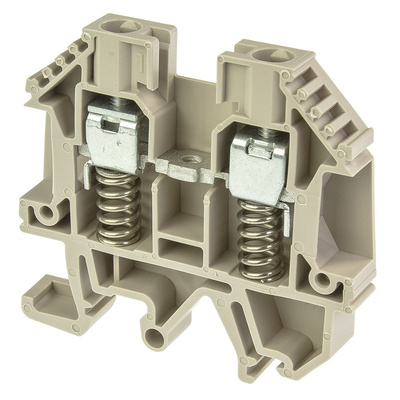

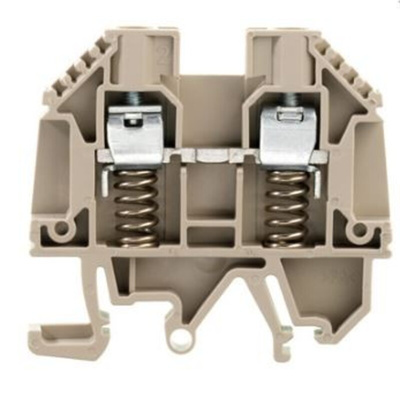

Need a safe way to connect multiple conductors? This feed-through terminal block from Weidmuller keeps your wires on the right track. Its spring-loaded terminals grip conductors firmly even when the clamping screw is loose to ensure they stay in place. A robust plastic casing insulates live components to reduce the risk of damage caused by current spikes. This self-extinguishing unit also bumps up workplace safety by helping to prevent the spread of fires. It's a flexible product that accepts wire sizes between 20 and 8AWG without a hitch, giving you a single solution for different wiring tasks.

Features & Benefits

• Voltage rating of 500V for use in medium-power applications
• Brown colour for ease of identification in a colour-coded network
• Wide operating temperature range between -60°C and +130°C for use in harsh conditions

Applications

• Automated industrial operations
• Medical imaging equipment
• Aerospace systems
• Telecommunications installations

How do I mount this feed-through terminal block?

Mounting is easy as can be. Just clip it onto a TS32 or TS35 DIN rail for convenient and tool-free installation.

How big is this feed-through terminal block?

It's a small component with dimensions of 60 (H) x 7.9 (W) x 51.1mm (D), helping to maximise space on your DIN rail.

Approvals

1-11

The ’W’ series screw clamp terminals are suitable for ’Top Hat’ DIN Rail and manufactured from nylon 6.6 which has a continuous temperature rating of 120°C (180°C short term). They are self-extinguishing to UL94V-0 and free from cadmium and halogen. Current bars are constructed from 10 mm electrolytic copper to ensure a current loading more than nominal rating. Terminals are suitable for mounting on symmetric ’Top Hat’ rail only (BS5584:1978, EN 50022) and are touch proof in accordance with BS 3042.

WDU 6 SL/EN TERMINAL WDU W.TEN.CLAMP AND SPRING
